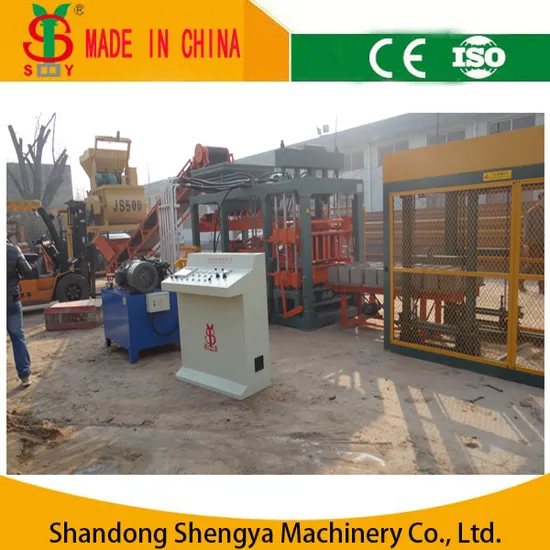

QT8-15 Full Automatic Hydraulic Cement Block Making Machine

Product Description

Product Introduction:
QT8-15 Block Forming Machine is completely controlled by PLC system. By operating its computer interace. The random signal analysis, fault diagnosis and parameter setting-up of all kind of materials can be achieved easily.
For the electro-hydraulic proportional valve is used in its vibrating system. The material-feeding with low frequency and the shape-vibrating with high frequency have been achieved. At the same time installed the Board said devices on the vibration table. And its low 1-1.55mm than the vibration table. When the vibration box drop, the Board said devices will stand the pallets so that will reduce the pressing of vibration box and increase the vibration force. To build a higher density of block and also will contral the higher of the produces. Within the error 1mm.
Its rake feeding system mounter with multirow of stirring forkscan quickly and evenly discharge the materials into the moulding box.
According to the produces, its will can changed the the moulds. All kinds of blocks. Standard bricks, cellular bricks. Grass planting titles, decoration bricks. Pavement bricks. Ect. Can be manufactured, with an annual production capacity of 70.000 cubic meters.
Main Technical Specifications:
Product quantity
240X115X53 39 P/M
240X115X90 18 P/M
390X190X190 8 P/M
Power
46.4KW
Cycle
15-18S
Overall Size
4900X2000X2580MM3
Vibration Force
100KN
Carriage Size
900X850X35mm
Vibrations frequency
45-75Hz
Rated Pressure
16MPA
