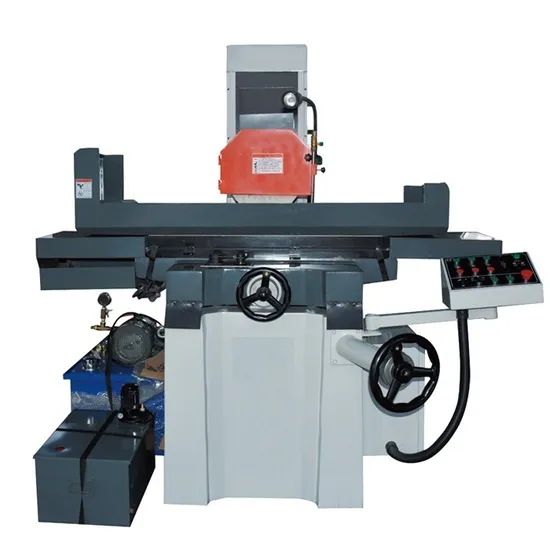

MY1022 Hydraulic Precision Surface Grinding Machine with CE Standard
Basic Info.
Model NO.
MY1022
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Workpiece to Be Ground
540X250mm
Max Travel of Table
560X260mm
Spindle Motor
1.5kw
Distance From Table to Spindle Center
450mm
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Trademark
WMT
Origin
Chizhou, Anhui, China
HS Code
8460190000
Production Capacity
50sets/Month
Product Description
Surface Grinding Machine (MY1022):
1.P4 precision ball bearing for spindle
2.Bring transmission by synchronous belt
3.Size:540x250
4.OEM
Specification:
Specification | MY820 | MY1022 | |
Max workpiece to be ground | 480x200mm | 540x250mm | |
Max travel of table | 520x220mm | 560x260mm | |
Table max cutting area | 520x200mm | 540x250mm | |
T-slot (number width) | 1x14 | 1x14 | |
Distance from table to spindle center | 450mm | 450mm | |
Wheel size (dia width bore) | 200x20x31.75 | 200x20x31.75 | |
Spindle speed | 2850r/m | 2850r/m | |
Table longitudinal (left and right) speed | 3-20m/min | 3-20m/min | |
Table horizontal (before and after) the amount of feed | Continuous (variable speed) | 150mm/min | 150mm/min |
Intermittent (stepless) | 0-5 | 0-5 | |
The handlewheel rotates | 2.5mm | 450mm | |
Hand wheel each grid | 0.02mm | 0.02mm | |
Vertical (up and down) feed wheel feed | The handlewheel rotates | 1.25mm | 2 |
Hand wheel each grid | 0.01mm | 0.01mm | |
Spindle motor | 1.5KW | 1.5KW | |
Cooling motor | 40W | 40W | |
Hydraulic motor | 1.5KW | 1.5KW | |
Working pressure | 3Mpa | 3Mpa | |
Oil tank capacity | 80L | 80L | |
Max capacity | 18L/min | 18L/min | |
The mechanical surface of the base of parallelism | 300/0.004mm | 300/0.004mm | |
Surface roughness | Ra0.32 | Ra0.32 | |
N.W. | 1.05T | 1.25T | |
G.W. | 1.15T | 1.35T | |
Machine size | 1680x1140x1720mm | 1680x1220x1720mm | |
