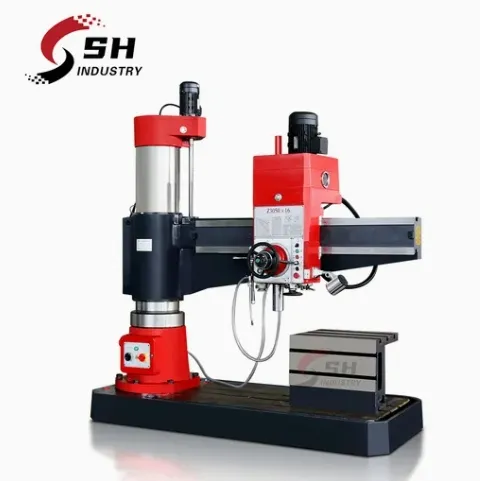

Universal Radial Drilling Machine Price Z3050X16 Hydraulic Radial Column Drill Machine
| US$7,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050X16
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Universal Radial Drilling Machine Price Z3050X16 H
Max.Drilling Dia
50
Distance From Spindle Nose to Table Surf
320-1240
Spindle Travel (mm
315
Spindle Cone(Mt)
5
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000
Packaging & Delivery
Package Size
250.00cm * 106.00cm * 280.00cm
Package Gross Weight
3500.000kg
Product Description
Universal Radial Drilling Machine Price Z3050X16 Hydraulic Radial Column Drill MachineProduct Description
The main performance characteristics:
Hydraulic transmission
Hydraulic clamping
Hydraulic pre-selection
electricity machinery double insurance
Specifications:
| SPECIFICATIONS | Z3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 320-1240 |
| Distance between spindle axis and column surface (mm) | 350-1640 |
| Spindle travel (mm) | 315 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 25-2000 |
| Spindle speed step | 16 |
| Spindle feeding range(r.p.m) | 0.04-3.2 |
| Spindle feeding step | 16 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 3500 |
| Overall dimensions (mm) | 2500×1060×2800 |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
