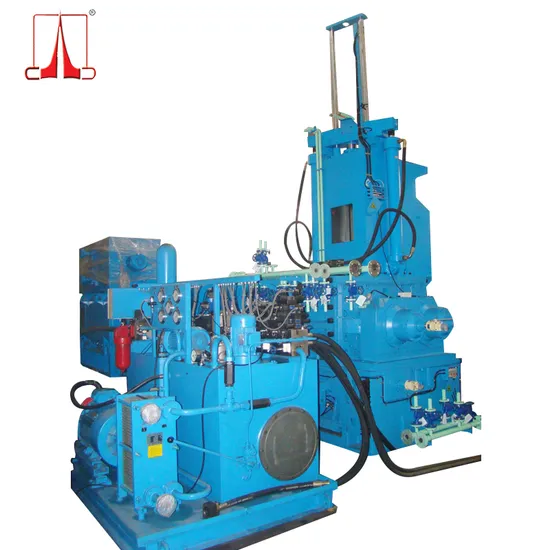

High Performance Plastic and Rubber Banbury Mixer Lx-110L

Product Description

High Performance Plastic and Rubber Banbury Mixer LX-110L Product Description
Quick Details
Condition: New
Type: Rubber Mixer
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: X-100L
Voltage: 380V
Power(W): 220000
Dimension(L*W*H): 1500x1200x3500 mm
Weight: 24 T
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Plastic Banbury
Plastic Banbury Color: Green / Blue / etc. (customize available)
Banbury Mixer Material: Cast Iron / Steel
Motor for the Internal Mixer: Frequency Control or not
Banbury Internal Mixer Rotor: Tangential
Thickness of Abrasion-resistant Alloy: 5 mm
Drive of Top Mounted Hammer: Pneumatic or Hydraumatic
Hardness of Mixer Machine Rotor: 50 HRC

Packaging Details: Delivery Detail:

Wood Pallet & Film Wrap (Plastic Banbury)

90 Working Days Since Down Payment (Plastic Banbury)

Specifications

Plastic Banbury
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Converter Motor & Intermesh Rotor
4. Abrasion Resistant Alloy
Detailed Photos



Why Choose Plastic Banbury Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management


Product Parameters

Main Parameters of Our Plastic Banbury:

ITEM/MODEL	LX-1.5L	LX-3L	LX-10L	LX-35L	LX-55L	LX-75L	LX-100L	LX-160L	LX-190L	LX-270L	LX-410L
ROTOR TYPE	TANGENTIAL ROTORS
RAM DRIVER	HYDRAULIC or PNEUMATIC
Total Volume	1.5L	3L	10L	35L	55L	75L	100L	120L	160L	270L	410L
FILL FACTOR	75%
MainRotor Speed(r/min)	6~6 8~80 10~100	6~6 8~80 10~100	4~40 5~50 6~60
Rotor speed ratio	1:1.17
Power(kw)	22 37 55	37 55 75	75	110	132	160	220	400	500	1250 1500	1250*2
Weight(T)	2,3	3	6	9	12.5	16	22	28	36	45	60

ITEM/MODEL

LH-1.5Y

LH-3Y

LH-10Y

LH-35Y

LH-55Y

LH-90Y

LH-135Y

LH-160Y

LH-190Y

LH-250Y

LH-320Y

LH-410Y

ROTOR TYPE

INTERMESHING ROTORS

RAM DRIVER

HYDRAULIC or PNEUMATIC

Total Volume

1.5L

3L

10L

35L

55L

75L

100L

120L

160L

270L

410L

FILL FACTOR

65%

MainRotor Speed(r/min)

6~60 8~80 10~100

6~60 8~80 10~100

4~40 5~50 6~60

Rotor speed ratio

1:1

Power(kw)

37 55 75

55 75 90

110

160

250

280 350 450

500 630 750

630 750 800

750 1000 1250

1250 1500

1250 1500 1800

2500

Weight(T)

2.8

3.5

6.6

9.5

12.9

16.5

22.5

28.5

37

46

61

79

Application of Our Plastic Banbury
It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.

Features of Our Plastic Banbury
Our Mixer has international standard performances. It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life.
All parts contact with the compounds are circulated through cooling water with large enough cooling area. It is equipped with water-temperature control. Which is the guarantee of quality for mixed various compounds.

Description of Our Plastic Banbury
Driving system consists of motor and high precision hardened gearbox with drum type teeth coupling and high speed couplings. It takes many kinds of forms for changing speed: DC motor, AC motor, AC motor with converter, Hydraulic motor drive. The machine has the advantages of smooth-driving, low-noise and along service, etc. Control system adopts PLC with both manual and automatic functions with easy shift. It can realize to the control of time, temperature and energy. Signal checking, feedback as well as safety protection are provided so as to control mixing quality of compounds more effectively, to shorten assistant time and to reduce labor intensity.

Packaging & Shipping
Wood Pallet & Film Wrap ( Plastic Banbury )
Company Profile
Our Services
Plastic Banbury
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
