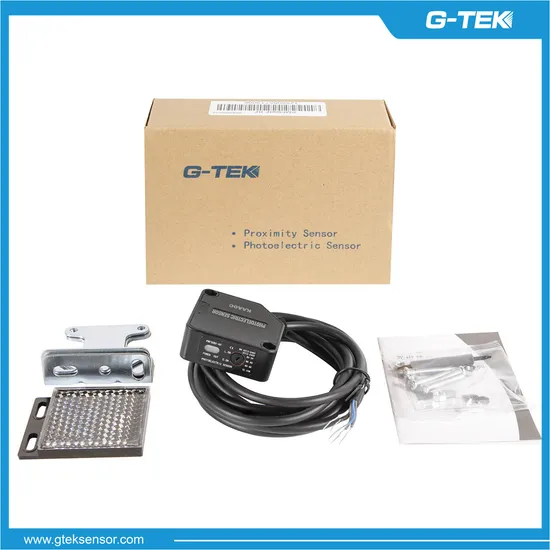

Reflection Photoelectric Sensor Automatic Door Safety Sensor for High Speed Door

Product Description

Product Description PMF50R retro-reflective photoelectric sensor is our one popular model used at industry door such as high speed door, roller shutter door, garage door and so on. There are different detection range can be selected as 7m, 12m and Supply voltage 10-30V DC & 12-240V DC/AC for selecting which can meet different demands of customers.

Photoelectric sensor	PMF50R-RF-2
Detection Type	Retro-reflective
Detection Range	RP02/RP05: 7m; RP01:12m
Light Source	630mm red LED
Supply Voltage	10-30 VDC
No-load Current	Max.60mA
Response Time	Max.20ms
Control Output	Relay output,(contact rating: 30VDC 1A resistance load, 120VAC,1A resistance load,contact component: 1C)
Action	Light on/Dark on for selecting by potentiometer
Indicator	Power indicator: Green, Action indicator: Red
Protection circuit	Reverse polarity protection
Ambient lightness	Sunlight: Max.30000Lux fluorescent: Max.3000Lux
Ambient Temperature	-20~+65ºC(Non-freezing)
Ambient Humidity	0~90%RH
Material	Housing:ABS,Lens:PMMA
Protection Rate	IP67
Cable	Φ5, 5×0.2mm² 2m
Accessory	Bracket: IB02, Screw: M4×25

Photoelectric sensor	PMF50RF-RF-2
Detection Type	Retro-reflective
Detection Range	RP02/RP05: 7m; RP01:12m
Light Source	630mm red LED
Supply Voltage	12~240V DC/AC
Power consumption	Max.3VA
Response Time	Max.20ms
Control Output	Relay output,(contact rating: 30VDC 3A resistance load, 250VAC,3A resistance load,contact component: 1C)
Action	Light on/Dark on for selecting by potentiometer
Indicator	Power indicator: Green, Action indicator: Red
Protection circuit	Reverse polarity protection
Ambient lightness	Sunlight: Max.30000Lux fluorescent: Max.3000Lux
Ambient Temperature	-20~+65ºC(Non-freezing)
Ambient Humidity	0~90%RH
Material	Housing:ABS,Lens:PMMA
Protection Rate	IP67
Cable	Φ5, 5×0.2mm² 2m
Accessory	Bracket: IB02, Screw: M4×25

Company Profile Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider, which was established in 2003 with business ranges from Proximity switch,photoelectric sensor,measurement and safety light curtain to Laser rangefinder sensor,laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.
Tianjin G-TEK sensor technology co.,ltd was established in 2014 at Xiqing district , Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacture base.

G-TEK Sensor Product List
1	Photoelectric Sensor	PMF21/PMF50/PMF55/PMF80 /PM18/PS18/PT12 series
2	Proximity Sensor	IM12/IM18/IM30/IF17 series
3	Infrared light curtain	LSM/LSMC/LSE/LSEC series
4	Safety light curtain	LSA series
5	Infrared vehicle separator	LHA/LHAC/LHN/LHNC series
6	Loop detector	GVD3/GVD1 series
7	Laser radar	LSD/LND series
8	3D TOF product	GDC1100/GDC1101/GDC1102
9	Other sensor product	Microwave radar, Revolving door Anti-pinching sensor
