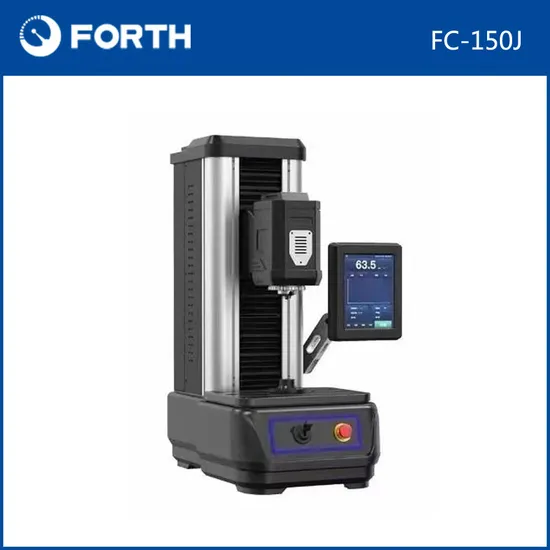

Advanced Full Automatic Rockwell Hardness Testing Machine for Precision Measurement

Product Description

Product Description The full-automatic Rockwell hardness tester (measuring head move up and down) realizes the full-automatic control of the hardness testing process. The loading system uses high-precision force sensor and central controller to form a closed-loop to realize the precise control of the test force value. The sounding system uses high-precision displacement sensors, which can obtain a hardness value resolution of 0.1HR.
The equipment stage is fixed, and the hardness test is carried out by the up and down movement of the measuring head. The fixed test bench can eliminate the coaxiality error caused by the up and down rotation of the traditional lead screw. While improving the test accuracy and repeatability, the stability and work efficiency of the hardness tester are increased.High-speed precision step control system is adopted to realize high-precision and fast test;New design, mobile head structure, the use of high-precision rail control head precise movement;High-definition LCD touch screen operation, menu-type operation interface, intuitive display, simple operation;Configure a wireless printer to facilitate the printing and saving of test results.
MAIN SPEC

Name	Parameter
Control system	Precision step control system
Dwelling time	1-60S
Initial test force	10kgf(98.07N)	3kgf(29.4N)
Total test force	60,100,150kgf(588.4,980.7,1471N)	15,30,45kgf(147.1,294.2,441.3N)
Indenter specification	Diamond Rockwell indenter, ф1.5875mm ball indenter
Max.height of sample	280mm
Distance from indenter to the inner machine wall	170mm
Measure scales	HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T,HR15X,HR30X,HR45X,HR15Y,HR30Y,HR45Y,HR15W,HR30W,HR45W
Conversion scales	HRA;HRB;HRC;HRD;HRF;HV;HK;HBW;HBS;HR15N;HR30N;HR45N;HR15T;HR30T;HR45T
Hardness reading	LCD Digital Display
Hardness value resolution	0.1HR
Data output	Built-in bluetooth,RS-232 interface,USB interface
Power supply	AC220V,50Hz
Overall dimensions	400*855*620mm
Net weight	About 180KG
