Program Control Heavy Duty Paper Cutting Machine for Printing

Product Description

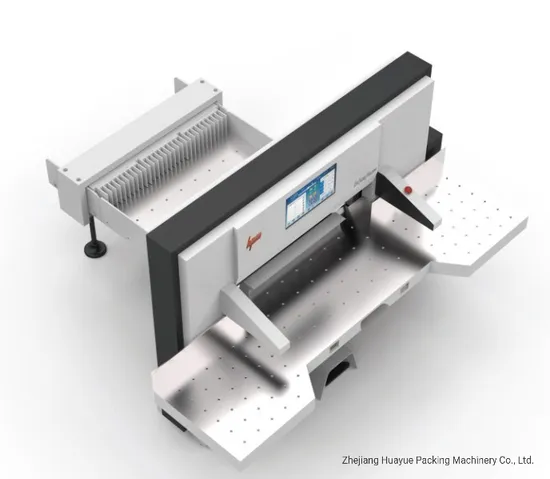

HPM137S22 Program Control Paper Cutter


Computer System
1. The up-to-date 22" Widescreen LCD, full touch screen; PLC control.
2. Eight languages to choose.
3. Metric system and British system two units, show the dimensions of the front knife and the back knife.
4. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.
5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 30-38m/min.
6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.
7. With USB, transmit data, to convenient operator make programming and arrangement via PC.
8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.
9. The backgauge is driven by a Panasonic servo-motor with four speed levels.
10. Use Italy oil pump and hydraulic system.
11. With automatic pushing paper function, the distance can be adjusted.
12. Adjustable time delay for knife activation, accurate and convenient.
13. Uses icons to show operational functions, which are simple and user friendly.
14. With full automatic cutting function. The backgauge and knife movements can be monitored on the screen.



Machine Performance
1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2. Clamp press paper stack through hydraulic system, the spring re-position.
3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE and Japanese ORMON famous international brands.






Configuration Listing

No	Name	Brand, specification & model	Origin of brand
1.	Background LCD	22''Color touch Interface	China
2.	Control center	PLC (CPU224)	China
3.	Backgauge position motor	INOVANCE servo motor	Japan
4.	Pick-up	Autonics	Korea
5.	Limit switch	TE	France
6.	Guarding motor	TE	France
7.	Air switch	TE	France
8.	AC Contactor	TE	France
9.	Miniature relay	OMRON	Japan
10.	Switching power supply	TE	France
11.	Power switch	Moeller	Germany
12.	Ball screw	High accurate	Taiwan
13.	Linear guider	High accurate double linear guides	Taiwan
14.	Hydraulic system	Double gear pump	Italy
15.	Bearing	NSK	Japan
16.	Work Table	Slotless and plated chromium work table	China
17	HSS knife	Kanefusa	Japan

Technical Parameter

Model	Unit	137
Max.Cutting Width	cm	137
	inch	53.9
Max.Cutting Length	cm	145
	inch	57.1
Max. Cutting Height	mm	165
	inch	6.5
Min. Cutting Size (without false clam pplate)	mm	30
	inch	1.2
Min. Cutting Size (with false clamp plate)	mm	90
	inch	3.5
Front Table Length	cm	73
	inch	28.7
Max.Clamp Pressure	N	45000
Max. Cutting Speed	time/min	43
Main Motor	KW	4
Net Weight	Kg	4100
Gross Weight	Kg	4500
Packing Size(L×W×H)	cm	310×190×210
