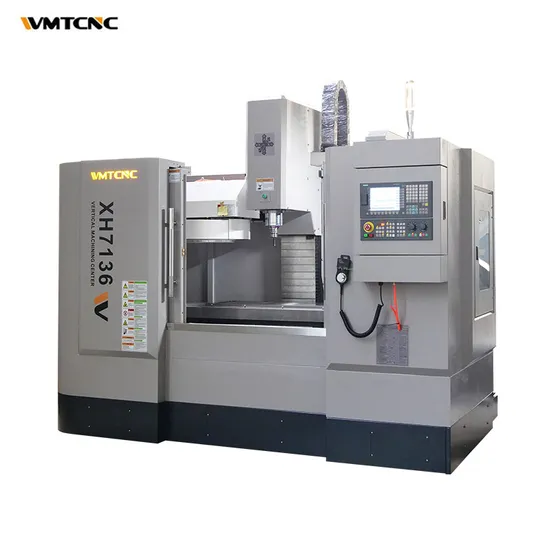

WMT New Tech precision milling machine cnc 4 axis XH7136 vertical milling machine

Product Description

Product Description
WMT precision milling machine cnc 4 axis XH7136 vertical milling machine main features:
1. Main unit type is used in the main axle and the standard of the knife handle is BT40/NT40, servo motor and numerical control motor are used in the working table.
2. Three axle linkages are adopted to meet the processing accuracy requirements.
3. This lathe is suitable for semi-automatic processing such as: drilling , tapping, chamfering, bearing, milling face thread, handle and tower and other processes in the batch production and fitted for the many work pieces and multi-machine management.
4. The machine main structure has high rigidity, Y/Z axes adopt rectangular guide way, X axes adopt swallowtail guide way.
5. The table surface and the guide ways are hardened.
6. The machine is lubricated by the automatic lubrication mechanism.
7. X,Y,Z axes adopt ball screw, low speed feed without crawl and high precision.
8. The spindle realizes the automatic infinitely variable speed by the way of motor.
9. With functions of tool self-lock.

Specification	XH7136
Worktable
Worktable size(LxW)	1250x360mm
T-slot (NxWxD)	3-18/80mm
Travel
X/Y/Z axis travel	900/350/500mm
Machining range
Distance from spindle center to column	460mm
Distance from spindle nose to worktable surface	100-600mm
Spindle
Spindle taper	BT40
Spindle power	5.5kw
Max.spindle speed	8000rpm
Feed
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	10/10/8m/min
Power
AC servo motor torque(X/Y/Z)	7.7/7.7/15N.m
X/Y/Z feed motor power	1.5/1.5/2kw
Rated power	11kw
Ball screw(diameter+lead)
X/Y/Z axis ball screw	X-3206,YZ-4006
Tool magazine
Tool magazine capacity	16T
Max.length of tool	200mm
Tool change time(T-T)	7s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	±.0.02mm
Re-positioning accuracy(X/Y/Z)	±.0.01mm
Machine dimension
LxWxH	3000x2150x2450mm
Machine weight
Max.loading of worktable	350kg
Machine weight	3500kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
