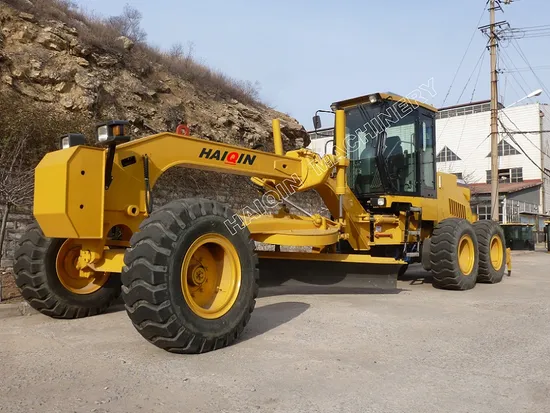

220HP New Model Motor Grader (HQ220) for Sale

Product Description

Advantage of HQ220 Motor Grader:
(1)With Shanghai or Cummins Engine of 220hp and turbocharged, the high torque reserve coefficient, low fuel consumption, reliable performance, to ensure a stable and reliable power output of the machine at different operating conditions.
(2)The advanced ZF gearbox, electro-hydraulic gear shift, sensitive and reliable operation.
(3)The three- stage type rear axle, with no-spin differential, the high - energy section effective, reliable and durable.
(4)Panoramic view cab is spacious and comfortable, and good cushioning and sound-absorbing material, effectively reduce interior noise; Equipped with air conditioning and sound equipment supply comfortable driving condition for the driver.
(5)The hydraulic system is equipped with permco pump provides smooth power for hydraulic system. The original husco working valve adopted realizes the reliable hydraulic system. The hydraulic cylinder adopts the imported sealing parts effectly increases the system stability.
(6)The brake system uses original MICO brake value filling valve, more safe and reliable service brake.
(7)Articulated around the frame, with the front-wheel steering, small turning radius, mobile and flexible.
(8) Optimized blade curvature and greater throat gap, realizes good through-ability for material, wear steel plates for ming the overall pressure quenching heavy blade makes it longer life.

	Item		HQ220
Engine	Model		Shanghai or Cummins
	Power	Kw/hp	162/220
	Speed	r/min	2200
	N/m	Nm/r/min	844Nm/1400r/min
scraper knife	Size	mm	4270x610
	Max turning angle	°	360
	Max angle of inclination	°	90
Transmission	Gearbox model		WG180
	Tire		17.5-25
	Pressure	Mpa	0.26~0.28
Other technical	Size	mm	9100x2640x3550
	Min turning radius	mm	7800
	Max pull force	kN	90
	Operation weight	Kg	17000
	Front axle load	Kg	5000
	Rear axle load	Kg	12000
	Hydraulic pressure	Mpa	18
Speed	Front	Km/h	0~39
	Back	Km/h	0~26.03
