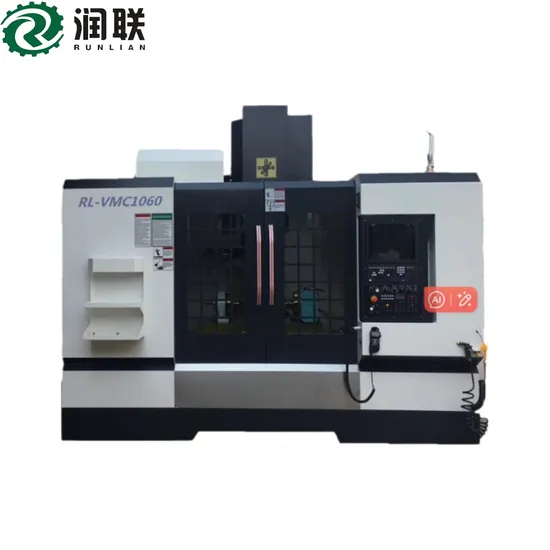

3-Axis 4-Axis 5-Axis CNC Vertical Machining Center Vmc1060

Product Description

Product Description
3 Axis 4 Axis 5 Axis CNC Vertical Machining Center High Precision Milling Machine VMC1060
VMC1060 vertical milling machine machining operations utilize vertical machining centers (VMCs), which, as the name suggests, have vertically oriented machine tools. These machines are primarily utilized to turn raw blocks of metal, such as aluminum or steel, into machined components.
Detailed Photos
Product Parameters

Specifications	unit	VMC1060
X/Y/Z travel	mm	1000/600/600
Distance from spindle nose to table surface	mm	120-720
Distance from spindle center to column surface	mm	650
Spindle Power	kw	11/15
Spindle speed	rpm	10000
Spindle Taper		BT40 (Φ150)
Positioning Accuracy	mm	±0.003
Repeat Positioning Accuracy	mm	±0.0015
Table Size	mm	1100x600
Max.Table loading	kg	900
T-Slot		5-18-100
X/Y/Z rapid speed	M/min	36/36/36
Cutting Speed	mm/min	1-10000
X/Y/Z axes ball screw diameter		Φ40
X/Y/Z axes servo motor power	kw	3.0/3.0/4.5
Linear width X/Y/Z	mm	45/45/45
Guideway No. X/Y/Z		2/2/2
Slider No. X/Y/Z		6/4/6
Max.power consumption	kw	25
Air	Mpa	0.5-0.7
Power		380V/220V/415V/50(60)Hz/3ph
Ambient Temperature		0ºC-42ºC
Relative humidity		≤80%
Machine Net Weight	T	6.5
Overall Dimension	mm	3200x2550x2600

Packaging & Shipping


Company Profile
Weifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprise, metal cutting machine tools, metal cutting tools, Grinder abrasives, measuring tools, machine tool functional parts, numerical control devices, metal forming machine tools, lubricating grease and oil Machine function parts, numerical control devices (CNC), Metal forming machine, mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider.
FAQ
Q1: Are you a factory or a Trade Company?
A1: We are Industry and trade integration.
Q2: Is your company accept customization?
A2: Yes, we can undertake to customize and process, including non-standard products(We could make it according to your request.).
Q3: What is the Payment Term?
A3: FOB, CFR, and CIF are all acceptable.
Q4: When is the delivery time?
A4: A) The machine Tools & Accessories could be arranged for delivery within 3 days after your full payment,
B) The Machines Could Be arranged for delivery Within 20 -30 Days(Include Production Time).
Q5: What are the shipping ways?
A5: International express, by air, by sea are all ok.
