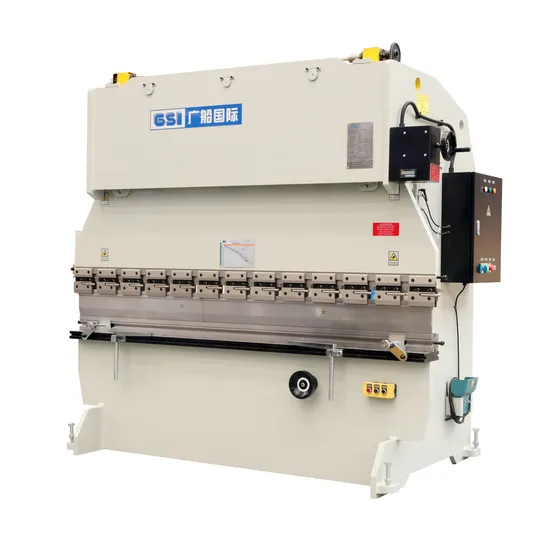

Good Quality Torsion Bar Press Brake Bending Machine for Sheet Metal Bending

Product Description

Product DescriptionGSI AC Series Torsion Bar Synchronous Press Brake AC100/4000
Product Features:
- Two stage speed control, first rapidly descending (fast forward) and then slowly pressurizing (work forward);
- The back gauge is driven by a motor, with manual adjustment and digital display;
-Three cylinder synchronous downward pressure can compensate for the slight deformation of the workbench and pressure beam after being subjected to force.
-The working mode includes jog, single operation, and continuous operation. The reversing and pressure holding time can be controlled through a time relay. The lower workbench panel has a full-length T-shaped groove for easy installation of molds of different specifications.
- According to the thickness and bending length of the plate, the corresponding bending pressure can be adjusted
Product Details
On the basis of A series, the opening height and throat depth are increased. The frame parameters are the same as those of AB series.
Quick clip is installed to facilitate the replacement of the press tool. The press tool can be directly installed without quick clip. The opening can be enlarged as well as the processing range of AB series.
Integrated Hydraulic System
- Integrated hydraulic system, slide up type, wide speed adjustment range, stable and reliable operation.
Mechanical torsion axis forced synchronous operation
- The upper and lower motion balance of the knife beam adopts mechanical torsion axis forced synchronous operation;
-Using mechanical positioning blocks ensures the accuracy of repeated positioning of the upper mold.
Main technical parameters of AC series torsion axis synchronous bending machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Strok(mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm	Speed			Overall Dimension			Weight (kg)
										Approach (mm/s)	Working (mm/s)	Return (mm/s)	L(mm)	W(mm)	H(mm)
1	AC63/2500	630	2500	2050	320	150	450	5.5	500	60	12	90	2650	1350	2500	4800
2	AC100/3200	1000	3200	2500	450	150	480	7.5	500	70	10	80	3350	1600	2680	7800
2	AC100/4000	1000	4000	3100	450	150	480	7.5	500	70	10	80	4150	1600	2830	10000
4	AC125/3200	1250	3200	2500	450	150	480	11	500	70	10	80	3350	1600	2780	8500
5	AC125/4000	1250	4000	3100	450	150	480	11	500	70	10	80	4150	1600	2930	10600
6	AC160/3200	1600	3200	2500	450	150	480	11	500	60	8	60	3350	1650	2880	10500
7	AC160/4000	1600	4000	3100	450	150	480	11	500	60	8	60	4150	1650	2980	12500

View more products , pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 30 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop View
Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
