15-21 Hlmjx-16c Henglong Standard 7500*2150*2200-11500*2150*2200 Fujian, China Hlmjx-20c Marble Polishing Machine
| US$32,000.00-67,100.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HLMJX-12C~24C
Type
Stone Polishing Machine
Control
Artificial
Automation
Automatic
Precision
High Precision
Application
Ceramics, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Quartz
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Wet Grind
Certification
SONCAP, ISO, CE
Condition
New
No. of Heads
12-24
Spindle Motor Power
7.5*20+9*4kw
Total Power
106-198kw
Water Consumption
17-25m³/H
Weight
15-21
Working Width
400-1050/1250mm
Working Thickness
12-50mm
Transport Package
Standard
Specification
7500*2150*2200-11500*2150*2200
Trademark
Henglong
Origin
Fujian, China
HS Code
84642090
Production Capacity
150 Sets/Year
Product Description

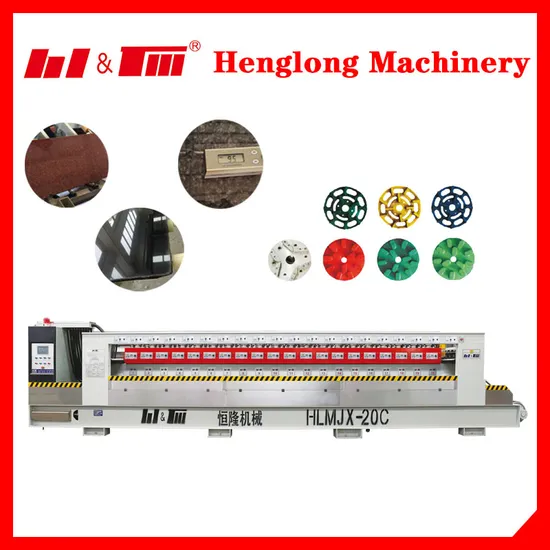

Henglong Automatic polishing machine for granite or marble slabs
HLMJx-12C~24C
1. This machine adopts foreign advance design and automatic controlling systems,combining with the demand of domestic market. It is a new intergration model og high-efficiency (about 500sqiuare meter/10h) low cost ,easy operation and durable.
2.It uses standard casting iron,steel,the brand electronic appliance,bearing and other components from Germany,Japan and Taiwan.
3. It adopts PLC control system, the operators can set the paremeter freely by the programmable controller with LCD screen. It equips with fault indicating system and alarming system abrasive consumption. The machines fits for continuous-grinding and polishing granite slabs. The conveying belt and the cross beam adopt frequency conversions for speed adjusting. Its processing width and working pressure of grinding heads can be adjusted freely (it can use resin polishing head and triangle resin abrasive material). The machine can identify the shape of the plates automatically, each disc(grinder)can resin and decend automatically by the identified shape while recording the output of grinding plate. The main spindles of the machine adopt the structure of sleeve-sliding.The whole machine is manufactured according the standardized process and it's performance is up to the domestic top level.
Details
Part of case
