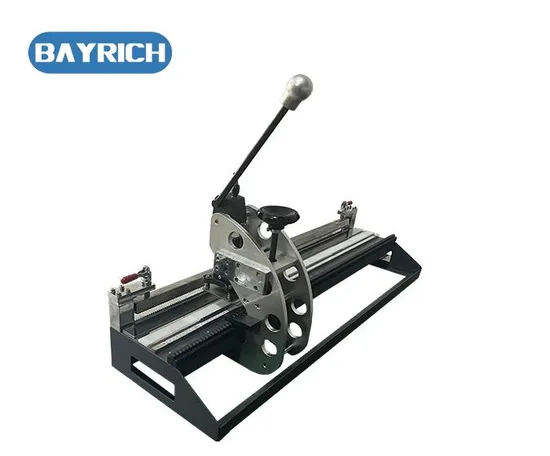

Bayrich PVC PU Pvk Conveyor Belts Manual Finger Punch Machine for 6mm Thick
Basic Info.
Model NO.
FH1000
Certification
CE
Condition
New
Customized
Non-Customized
Automatic Grade
Automatic
Structure
Vertical
Maximum Thickness
6mm
Width
900mm
Transport Package
Wooden Case
Specification
900mm
Trademark
Bayrich
Origin
China
HS Code
8477800000
Production Capacity
300PCS/Month
Product Description
Bayrich Conveyor belt finger punching machine for PVK belt★Detail: Designed to Punch Hard Belt -- Polyurethane belt etc.
★Features
1.The newest manual finger puncher, speical width can be customized for you!
2.Used for Hard belt,normal PVC,PU belt
3.No need electric power, no need air compressor, no need bring hydraulic pump etc.
4.It's a Width-limited machine,so you need to make sure what's the belt width you want to punch
5.Easy change the blade accords to work, also different blade size can make accords to your requirements (20×50,15×75,10×80,20×80 and etc.)
★Technical Datasheet
★Machine Detail
| Belt Clamp--Mechanical clamp bars are suitable for securing most belts | |||
| Mechanical turning handle -- flexible movement, with the lower gear, the card position is precise and will not shift. | Mechanical gear movement, stable stroke.The standard is 10mm *( 10mm means finger distance 10*50,10*60,10*70).If you need 20mm or 15mm etc,pls contact us. | ||
| Toothed rack - there is a circular roller under the punching head, turn the upper handle, the roller will be stuck in the groove of the racked rack, the circular roller, rack and gear are all to ensure the accuracy of the card position and the precision of the finger.--Any problem,We can show you more video. | |||
| Punching head (Blade) -- 10*50,10*60,20*50,20*60etc. | |||
★Bayrich machine ship to all over the word
