Lonking 22 Tons Small Remote Control Crawler Excavator Cdm6220 with Cummins Engine
| US$65,000.00-72,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CDM6220
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Dragline
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
21800kg
Max. Digging Height
5630mm
Max. Digging Depth
3830mm
Max.Dozer Lifting Height
390mm
Transport Package
Standard Packaging
Specification
6144*2272*2682mm
Trademark
newindu
Origin
China
HS Code
84295212
Production Capacity
500
Product Description
Lonking 22 Tons Small Remote Control crawler Excavator Cdm6220 with Cummins EngineProduct description Filtering System
The high efficiency dual air filter ensures the quality of engine air intake. In addition, the air pre-filter can carry out the rough filtration over the air intake to enable the operation under the poor air quality working conditions and prolong the maintenance interval of the air filter. The oil-water separator and high- precision fuel filter will filtrate the fuel many times to ensure the quality of fuel fed to the engine.
Cooling System
The parallel radiator cooling makes cooling effect better and maintenance easier.
Maintenance and Service
The easy maintenance of direct injection engine reduces the maintenance cost. This will relieve the customers of worrying about the service and ensure the attendance rate of excavator.
Technical parameter
| Model | Unit | CDM6220 | |
| Operating weight | kg | 21800 | |
| Standard bucket capacity | m³ | 0.09-0.23 | |
| Engine | Engine model | / | 4TNV94L |
| Rated power/speed | kw/rpm | 39.8/2200 | |
| Displacement | L | 3.054 | |
| Performance | Travel speed | km/h | 4.2/2.2 |
| Ground pressure | kPa | 32.2 | |
| Max.Bucket digging force | kN | 42.5 | |
| Max.traction force | kN | 50.5 | |
| Hydraulic system | Main pump | / | Japan rexroth |
| Max pressure of travel system | MPa | 22 | |
| Max pressure of pilot system | MPa | 2.9 | |
| Oil capacity | Fuel tank capacity | L | 110 |
| Hydraulic tank capacity | L | 85 | |
| Engine lubrication | L | 12 | |
| Overall dimension | Overall length | mm | 10000 |
| Overall width | mm | 8975 | |
| Overall height | mm | 7935 | |
| Track length | mm | 2540 | |
| crawer width | mm | 400 | |
| Clearance under counter weight | mm | 710 | |
| Ground clearance | mm | 385 | |
| Operating range | Max. digging height | mm | 5630 |
| Max. digging depth | mm | 3830 | |
| Max.dozer lifting height | mm | 390 | |

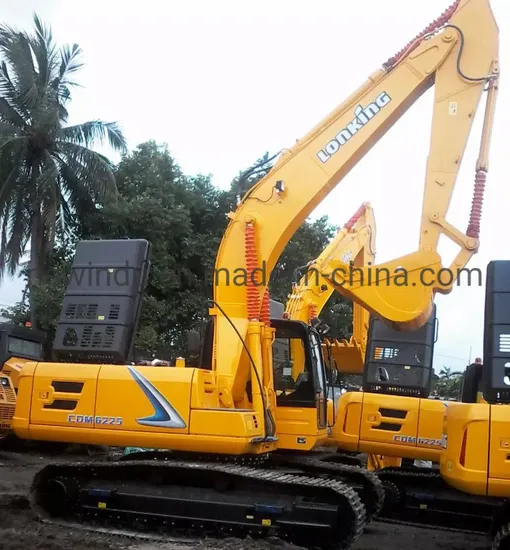

Product image
