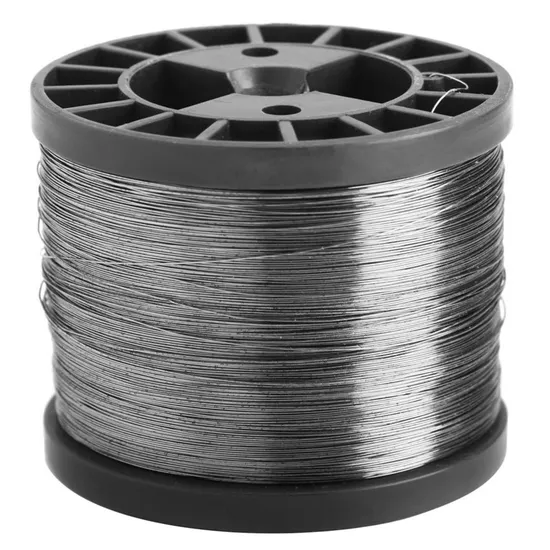

Aws A5.16 Erti2 Ground Titanium Welding Spool Wire for TIG & MIG Welding

Aws A5.16 Erti2 Ground Titanium Welding Spool Wire for TIG & MIG Welding

US$24.00-37.00 1 kg (MOQ)

Basic Info.

Model NO.
Titanium Welding Wire
Technique
Cold Drawn
Grade
GR2
Shape
Straight,Spool and Coiled
Cerficication
En10204-3.1b
Surface
Pickled, Polished
Condition
Annealed
Model Number
Titanium Wire
Material
Titanium
Color
Silver
Standard
Aws A5.16
Transport Package
Plywood Boxed
Specification
Dia 0.15-6.0mm
Trademark
W/O
Origin
China
HS Code
8108902000
Production Capacity
500 Tons /Year

Product Description


AWS A5.16 Erti2 Pure Titanium Welding Wire from 0.15 to 6.0mm diameter
AVAILABLE SIZES
Wire is available from 0.15 to 6.0mm diameter
PROCESSING
Cold drawing and hot drawing
STANDARD
AWS A5.16, ASTM B863, ASTM F67, ASTM F136, ASTM B348, AMS 4951, AMS 4921, AMS 4954, AMS 4956, etc.
EXAMPLE APPLICATIONS
TIG welding wire, MIG welding wire, anodizing rack tie wire, dental appliances, safety wire
AWS CHEMICAL COMPOSITION (weight %, Max or Range) OF TITANIUM WELDING WIRES
Classification
AWS A5.16 UNS No Ti C O N H Fe Al V Pd Mo Ni
ERTi 1 R50250 Rem. 0.03 0.03-0.10 0.012 0.005 0.08
ERTi 2 R50400 Rem. 0.03 0.08-0.16 0.015 0.008 0.12
ERTi 3 R50550 Rem. 0.03 0.13-0.20 0.02 0.008 0.16
ERTi 4 R50700 Rem. 0.03 0.18-0.32 0.025 0.008 0.25
ERTi 5 R56400 Rem. 0.03 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5
ERTi 7 R52400 Rem. 0.03 0.08-0.16 0.015 0.008 0.12 0.12-0.25
ERTi 9 R56320 Rem. 0.03 0.08-0.16 0.02 0.008 0.25 2.5-3.5 2.0-3.5
ERTi 12 R53400 Rem. 0.03 0.08-0.16 0.015 0.008 0.15 0.2-0.4 0.6-0.9
ERTi 23 R56401 Rem. 0.03 0.03-0.11 0.012 0.005 0.2 5.5-6.5 3.5-4.5
TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE UNS NO. WIRE BAR SHEET PLATE TUBE PIPE FITTING FORGING FASTENER
Ti Grade 1 R50250 √ √ √ √ √ √ X √ √
Ti Grade 2 R50400 √ √ √ √ √ √ √ √ √
Ti Grade 3 R50550 √ √ √ √ X X X √ √
Ti Grade 4 R50700 √ √ √ √ X X X √ √
Ti Grade 5 (6Al 4V) R56400 √ √ √ √ X X X √ √
Ti Grade 7 (0.2Pd) R52400 √ √ √ √ √ √ √ √ √
Ti Grade 9 (3Al 2.5V) R56320 √ √ √ √ √ X X √ √
Ti Grade 11 R52250 √ √ √ √ √ √ X √ √
Ti Grade 12 (0.3Mo 0.8Ni) R53400 √ √ √ √ √ √ √ √ √
Ti Grade 17 R52252 X √ √ √ √ √ X √ √
Ti Grade 23 (6Al 4V Eli) R56401 √ √ √ √ X X X √ √
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.
