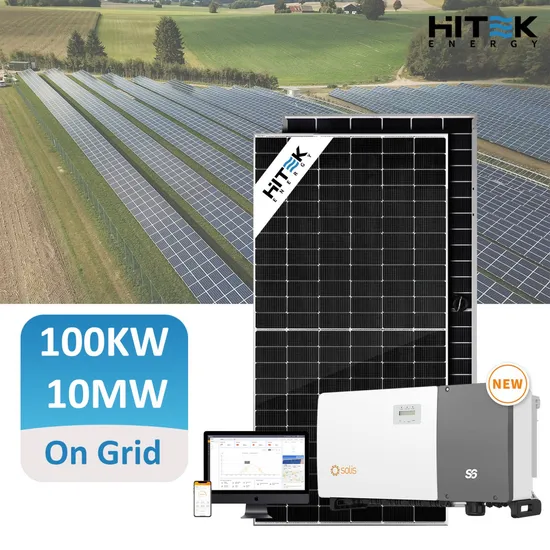

Commercial 100kw 500kw 1MW Solar Power Plant System with Strings Inverters on Grid Tied Solar Systems 1MW

Product Description

Product Description
The Grid-Tied solar system is widely used for home and business for there is no need for batteries, so the whole system is relatively cheap.When the solar power is sufficient for loads to use you usually can save your bills, even the excess solar electricity will simply be exported to the grid, you will get paid a feed-in-tariff.

C&I On Grid Solar System Configuration (Three Phase 50KW-1MW)
Components	HT50KW-ON	HT100KW-ON	HT500KW-ON	HT1MW-ON
560W Solar Panel	90 Pieces	180 Pieces	900 Pieces	1800 Pieces
DC Combiner Box	1 Piece	1 Piece	5 Pieces	10 Pieces
Grid Tied Inverter	50KW	1pcs 100KW	5pcs 100KW	10pcs 100KW
DC Cable 4mm2	600 Meters	1200 Meters	6000 Meters	12000 Meters
MC4 Connector	30 Pairs	50 Pairs	250 Pairs	500 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set	1 Set	1 Set	1 Set

This product is not a specification, need to be configured according to your own needs, if necessary, welcome to contact our salesman to customize your exclusive solution.
How it Works?What is the difference between grid-connected, off-grid and hybrid systems?
System ComponentsHiTek PERC Mono Solar Panel
Model:HT560M-72
Peak Power Watts: 560Wp
Open Circuit voltage (Voc/v):49.84v
Short Circuit Current(Isc/A):14.14A
Voltage at Maximum Power (Vmp/V):41.08v
Current at Maximum Power(Imp/A):13.64A
Dimensions:2279*1134*35mm
Weight:28±3%kgOn Grid Solar Inverter
Max.efficiency 98.75%.Upto 10MPPTs.
Wide voltage range and low startup voltage.
Remote firmware upgrade with simple operation
Overvoltage load reductionand leakage current
suppression technology, low failure rate.
Online Monitoring system
Open station supports one-click
installation and registration Problem
support one-click dispatch and navigation
Safe operation,traceable logs,etc
Support lifecycle data storage to ensure
data security and reliability
DC & AC Disconnect Switch
IP Rating:IP66
Rated Voltage:1000vDc
Connection Type:M20,M25,MC4
Rated Current:16A,20ADC Cable & MC4 Connector
Cross Section:4mm2,6mm2 0ptional
Rated Voltage:600vDC/1000vDc(TUV)
Rated Current: 55A,70A
Colors:Black For STD,Red Optional.
Lifetime:≤25 Years
PV Mounting System
Mounting Rail&Railsplice Kit: AI6005 &SUS304 Bolt.
MID&END Clamps: 30,35,40mm
L Foot Asphalt Shingle Mount & Hanger Bolt optional
Cable Clip & Tie Opional
Ground Clip & Lugs Optional
Packaging & Shipping
Global Projects Company Profile HITEK ENERGY gets founded in 2018. As superior photovoltaic manufacturer, HITEK ENERGY's dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
