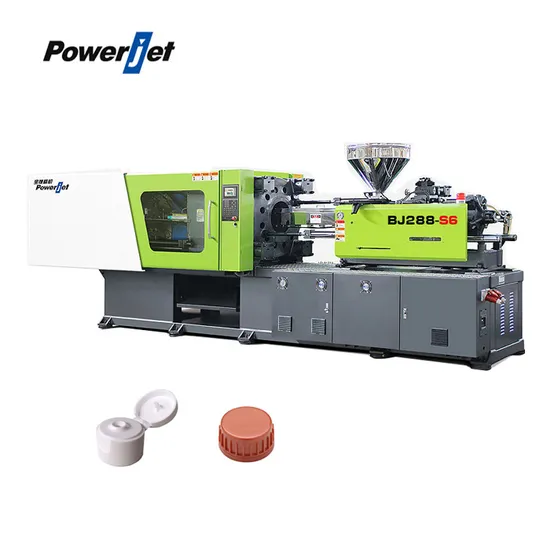

288ton Injection Molding Machine Plastic Making Machine for Anti-Theft Ring Bottle Cap

Product Description

HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.
Machine Details
Small injection molding machines Powerjet brand

Description		UNIT	BJ288-V6/S6
CLAMPING UNIT	Clamping force	KN	2880
	Opening stroke	mm	550
	Max.datlight	mm	1160
	Platen size	mm	890x890
	Space between bars	mm	610x610
	Max.mold height	mm	610
	Min.mold height	mm	230
	Ejector stroke	mm	145
	Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	52	60	68
	Screw L/D Ratio	L/D	21	21	19
	Injection Pressure	MPa	226	169	132
	Shot volume	cm³	594	791	1017
	Shot weight (ps)	g	529	704	905
		oz	18.7	24.8	32
	Injection rate	g/s	170	226	290
	Screw stroke	mm	280
	Screw speed	rpm	170
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	22/41
	Heater power	KW	13.8
GENERAL	Dry-cycle time	s	3.0
	Oil tank capacity	L	420
	Machine weight	T	8.0
	Machine dimensions (L*W*H)	m	5.9x1.53x2.2

Company Profile

We have established a global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers

FAQ

Q1: Are you a manufacturer or trading company?A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.Q2: Delivery timeA2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).Q3: Where is your factory located?A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
