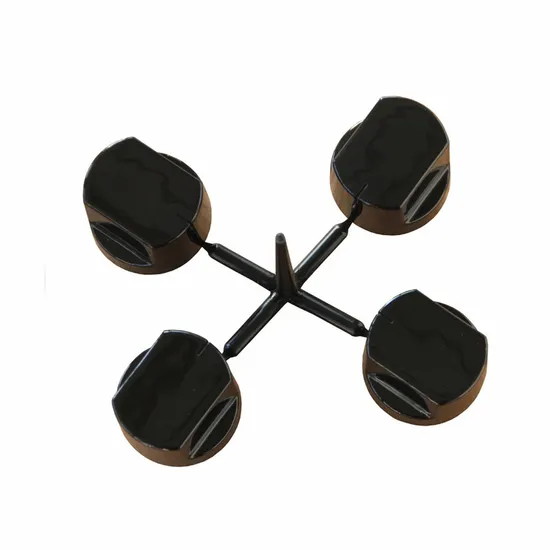

China Hiparter Custom Large ABS PC Parts Plastic Injection Mould Household Products Plastic Fitting Mold

Product Description

Product Description
Hiparter has more than 20 years experiences in designing and manufacturing Plastic Parts Injection Mold.
Product Parameters

Mold Name:	Plastic Injection Mold
Mould type:	Plastic injection molding
Mould core material:	S45C, S136, S136H, S50C, P20, 718H, 738H, NAK80
Runner:	Cold runner/Hot runner
Hardness of steel:	HRC38~42/HRC34~6/HRC48~52
Mould cavity	Multi cavity
Mould standard:	MISUMI
Mould installation:	Manual
Design soft:	UG
Molding surface treatment:	Polishing,Smooth, glossy, textured, matte
Mould Life:	100 thousand~300 thousand times
Plastic product material:	POM, ASA, ABS, PC, ABS+PC, PA, HIPS, PVC, PE, PS, Acrylic, etc.
Production process:	Injection molding
Mold or product size:	1) According to customers' drawings
	2) According to customers' samples
Mould precision:	+/-0.01mm
Ejection system:	Motor/hydraulic cylinder/stripping plate/angle pin, etc....

Processing equipment

Main Machining Equipments
Name	Model	Main Parameter(Stroke:XYZ) (mm)	Brand&Made In	Qty.
Five-axis CNC Milling, High Speed	Compact B-2522	Stroke( X/Y/Z):2000/2500/1200mm; Rotating Speed:24000rpm;Dynamic Accuracy:0.005mm ;	KEN,Taiwan	1
Five-sided CNC Milling	H-2622	Stroke( X/Y/Z):2600x2300x1100 ; Accuracy:0.02mm	KAFO,Taiwan	1
CNC Milling, High Speed	H16M	Stroke( X/Y/Z):1600x1300x700mm; Work table size:1900x1300mm; Accuracy:0.01mm	TAKUMI,Taiwan	1
CNC Milling, High Speed	F8	Stroke( X/Y/Z): 1300x800x650mm Work table size:1550x800mm; Positioning Accuracy:0.0015mm	MAKINO,Japan	1
CNC Milling, High Speed	F5	Stroke( X/Y/Z): 900X500X350; Work table size:1000*500;Accuracy:0.005mm	MAKINO,Japan	1
CNC Milling, High Speed	MAKINO V33i	Stroke( X/Y/Z):650*450*350; Rotating speed:20000rev/min; Accuracy:0.002mm	MAKINO,Japan	1
CNC Milling, High Speed	FANUC A-D14MiB	Stroke( X/Y/Z):500x400x330; Spindle rotate speed:24000rev/min; Work table size:650x400; Accuracy:0.003mm	FANUC,Japan	2
3+2 Axis Deep Hole Drill	DHD-2520	Work table size:2500x2000mm; Accuracy:0.02mm	TEMY,China	1
Precision EDM (Mirror )	MAKINO EDGE3i	Stroke( X/Y/Z): 330x250x250mm; Accuracy:0.005/0.003mm;	MAKINO,Japan	1
Precision EDM	AL60GS	Stroke( X/Y/Z):600x420x370mm; Accuracy: 0.01mm	Sodick,Japan	1
Precision Wire-Cut	VL600Qs	Stroke( X/Y/Z):600x400x270 mm;	Sodick,Japan	1
Precision Wire-Cut	AQ360LXs	Stroke( X/Y/Z):360x250x250 mm;	Sodick,Japan	1
Precision Wire-Cut	V650G	Stroke( X/Y/Z):650x400x350 mm;	EXCETEK,Taiwan	1
Precision grinding machine	KGS-84AHD	Worktable size: 800x400mm; Max left&right movement:920mm Max moving dimension(front to back):450mm;	KENT,Taiwan	1

Testing equipment

Name	Brand/Made In	X	Y	Z	Qty.
CMM	Hexagon, Swiss	1200	1500	1000	1
CMM	AEH	2000	3000	1500	1
Vision Projector Measurement Machine	China	300	250	200	2
Alloy Analyzer	LANScientific,China				2
Portable blue ray scanner	China	1502	1002	802	1
HSCNA-771

R & D capabilities
·We adhere to total solution service:
product design optimization→ injection mold design→ injection mold manufacturing→ injection mold debugging→ product inspection→ die specification manual sharing→ after-sales support.
·3D and CAD/CAM/CAE design
·More than 10 injection mold design engineers
·During nearly 20 years of development, Hiparter insists on providing high-standard and high-quality injection mold and support.
Variety of Mold Category
With more than 20 years of mold technology experience, Hiparter can develop and build all kinds of injection mold. Such as:
· Hot runner injection mold · Double-color Mold
· Gas Assisted Mold · RHCM Injection Mold
· Insert Mold · Overmold
· Stack Mold · Reverse Mold
· IMD Mold etc.

Our Advantages

Item	Plastic Injection Machine (Tonnage)	Qty.	Remark
1	2500	1
2	1800	1
3	1300	1	With EOAT
4	700	1	With EOAT
5	750	1	2K/3K
6	450	1
7	380	1
8	160	1
	TOTAL	8

·2~6 weeks lead time
·Update injection mold building progress to customer weekly, control project progress to ensure project schedule
·Exported to over 30 counties
·We have many injection molding machines, and all processes are completed internally in the factory
·With more than 10 years of import and export experience, cooperate with powerful logistics companies and major express companies, to ensure smooth export and delivered to customers asap.
FAQ
Q1 : Are you a trading company or manufacturer ?

A: We are factory and located in Qingdao City, Shandong Provice, China.
Q2: What information is required for a quote?
A. Please provide us with product 2D or 3D drawing. If you don't have drawings on hand, samples are also available for checking cost.
Q3: Can I have my own design?
A: Yes, we are very capable to do customized design and make for you. Please share with your ideas, we will discuss your needs, purpose and objective thoroughly and work together with you for the whole project.
Q4: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection.
Q5: How long is your delivery time?
A: The lead time of T0 sample depends on the mould structure, and generally it takes 40-50 days from receipt of final drawings, deposit and mold design approval. Mass production delivery time depends on the order quantity.
Contact Us
Make friends with every customer, provide them with quality products, and create more value for our customers, which is our forever concept.
More accurate quotation, please send us 2D/3D drawings of your products to us.
