New Advanced China Manufacturer for Pipe Welder with Cold Saw

Product Description

Hebei Tubo Machinery Co.,Ltd
Hebei Tubo Machinery Co.,LTD is a high-tech enterprise registered in Shijiazhuang City. Hebei Province. It specialized in Developing and Manufacturing for the complete set of equipments and related technical service of High Frequency Welded Pipe Production Line and Large-size Square Tube Cold Forming Line .
Product Description
With more than 130 sets all types of CNC machining equipment, Hebei Tubo Machinery Co.,Ltd., manufactures and exported to over 30 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 21 years.

TUBO Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere & anytime. Product Parameters

Model	Round		Square & Rectangular PIpe		Speed
	Dia.(mm)	Thickness(mm)	Dia.(mm)	Thickness(mm)	(m/min)
ERW32	10-38mm	0.5-2.0mm	10x10-30x30mm	0.5-1.6mm	Max.120m
ERW50	15-51mm	0.5-2.5mm	15x15-40x40mm	0.5-2.0mm	Max. 120
ERW60	16-60.3mm	0.5-3.0mm	15x15-50x50mm	0.5-2.5mm	Max.120m
ERW76	20-76mm	1.0-4.0mm	20x20-60x60mm	1.0-3.0mm	Max.120m
ERW89	25-89mm	1.0-4.5mm	20x20-70x70mm	1.0-3.5mm	Max.120m
ERW114	38-114mm	1.0-5.0mm	40x40-90x90mm	1.0-4.0mm	Max.80m
ERW165	60-165mm	2.0-6.0mm	50x50-150x150mm	2.0-5.0mm	Max.60m
ERW219	89-219mm	3.0-8.0mm	80x80-200x200mm	3.0-8.0mm	Max.50m
ERW273	114-273mm	4.0-10.0mm	100x100-250x250mm	4.0-10.0mm	Max.40m
ERW325	165-325mm	4.0-12.7mm	100x100-300x300mm	4.0-12.0mm	Max.30m
ERW426	219-426mm	5.0-14.0mm	150x150-350x350mm	5.0-14.0mm	Max.30m
ERW508	219-508mm	6.0-16.0mm	200x200-400x400mm	6.0-16.0mm	Max.25m
ERW610	325-610mm	6.0-18.0mm	250x250-500x500mm	6.0-18.0mm	Max.25m
ERW720	355-720mm	6.0-20.0mm	300x300-600x600mm	6.0-20.0mm	Max.25m

Detailed Photos
1. Uncoiler
Un-Coiler is the important equipment of entrance section of pipe mill line, mainly used to hold steel strip to make coils unfold, supplying raw material for the production line.
2. FlattenerFlattener is used to flat the ends of steel strip after Uncoiler, includes the Pinching Roll and Flattening Roll. providing the convenience for the next processing Shear & Butt Welding Device.
3. Shear & Butt Welding DeviceShear & Butt Welding is used to shear the irregular ends of steel strip and weld steel strips of two coils together. Thus ensuring the continuous production.
4.Accumulator
The accumulator is used to store the steel strip material before it is delivered to pipe forming machines, thus ensuring the continuous production.

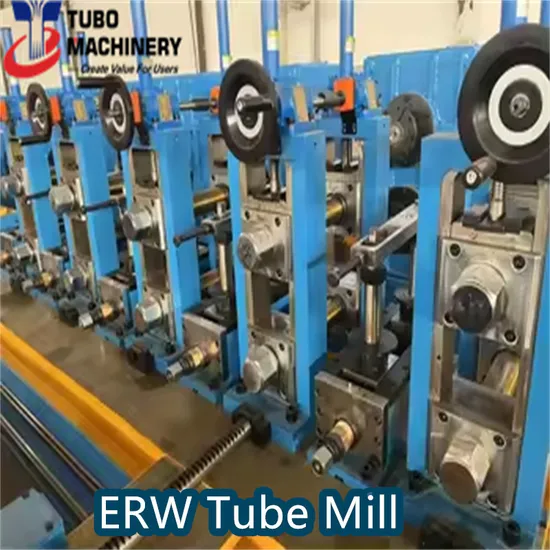

5. Forming section
This is one of the most important part for Pipe production line. Please kindly inform your following information, so that we will prepare the suitable Proposal offer for your checking.
1. Raw material.(Such as Carbon Steel/ Stainless Steel...etc
2. Steel thickness range.
3.Pipe diameter specifications. It's better that you can send the pipe specification list.
4.Your required production speed.

6. Welding sectionFor welding of low carbon and high strength steel pipe welding(Round pipe, Square & Rectangular tube), stainless steel pipe welding, brass welding, Aluminum Pipe welding, H-beam welding, Finned tube welding. Welding methods: Induction welding and Contact welding.
7.Sizing section
8. Cutting sawCold cutting saw can reach high precious even within +/-1.0mm and the pipe end is smooth without burr. 9. Automatic Packing machineAutomatic packing machine is used to colloct, stack steel pipe into hexagon or Square Shape, and bundle automatically. It runs stably without mannual operation. Meanwhile, eliminate the noice and knocking of stock of steel pipes. Our packing line can improve your pipes quality and production efficiency, reduce cost, as well as eliminate potential safety hazard.

Feature:
Stacking and Bunding automatically
Perfect surface tube
Less labors, Lower working strength
Automatic operation, lower noisy
We have provided nearly 300 sets of equipments to domestic and foreign customers; exported to Russia, Turkey, Cyprus, Romania, Albania, Mexico, Colombia, Chile, Venezuela, Ecuador, Iran, Egypt, Syria, Ethiopia, Uganda, Angola, Vietnam, Cambodia, Sri Lanka, Kazakhstan, Tajikistan, Kyrghyzstan and other countries and regions. Due to reliable quality and attentive service, we got praises from our customers.
