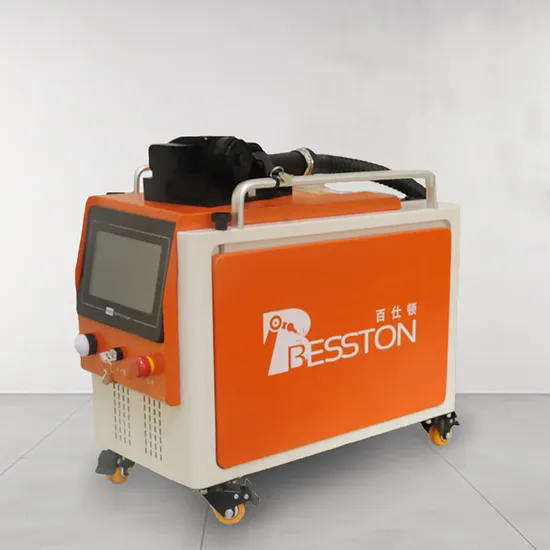

Portable Paint Cleaning Machine 100W 200W High Efficiency Non-Destructive Laser Cleaning Machine
Basic Info.
Model NO.
ND-N200w
Warranty
2 Years
Average Laser Power
200W/300W
Laser Centre Wavelength
1064nm
Cooling Method
Air-Cooled
Fibre Length
5m
Utility Frequency
50 Hz
Supply Voltage
AC220V±10%
Supply Air Pressure
0.4 MPa Clean Compressed Air, Free of Water and Oi
Transport Package
Wooden Box
Specification
L783xW300xH784mm
Trademark
/
Origin
China
HS Code
845611009
Production Capacity
10sets/Month
Product Description
Product Description| Model | LCP-100W | LCP-200W/300W | LCP-500W/1000W |
| Average laser power | 100W | 200W/300W | 500W/1000W |
| Laser centre wavelength | 1064nm | 1064nm | 1064nm |
| Scanning width | Length:Adjustable from 5mm to 150mm | Length:Adjustable from 5mm to 150mm | Length:Adjustable from 5mm to 150mm |
| Width:Adjustable from 5mm to 150mm | Width:Adjustable from 5mm to 150mm | Width:Adjustable from 5mm to 150mm | |
| Cooling method | Air-cooled | Air-cooled | Water-cooled |
| Fibre length | 5m | 5m | 10m |
| Cleaning head weight | Approximately 1.3kg | Approximately 1.3kg | Approximately 2kg |
| Net weight of the whole machine | Approximately 22kg | Approximately 32kg | Approximately 180kg |
| Chassis Size | L603xW258xH481mm | L783xW300xH784mm | L913xW573xH881mm |
| Supply Voltage | AC220V±10% | AC220V±10% | AC220V±10% |
| Utility frequency | 50 Hz | 50 Hz | 50 Hz |
| Power consumption@25ºC | <500W | <1000W@CW-H-200W | <4000W@CW-H-500W |
| <1500W@CW-H-300W | <6000W@CW-H-1000W | ||
| Supply air pressure | 0.4 MPa clean compressed air, free of water and oil | 0.4 MPa clean compressed air, free of water and oil | 0.4 MPa clean compressed air, free of water and oil |
Application
Our Advantages
