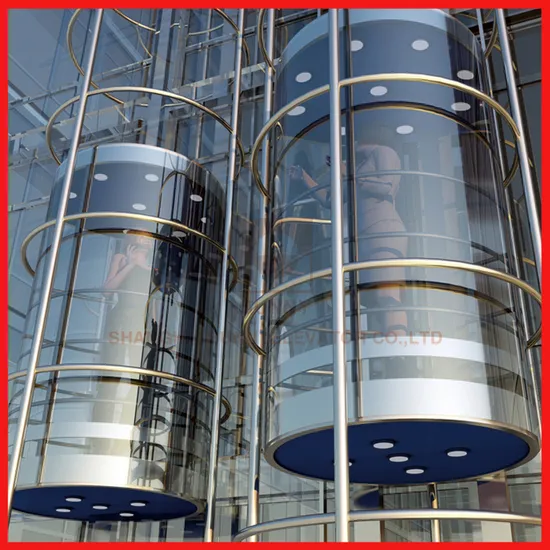

FUJI Vvvf Panoramic Passenger Elevator Post Observation Elevator Lift

Product Description

High Speed Safety Residential Panoramic Passenger Elevator
FUJI Vvvf Panoramic Passenger Elevator Post Observation Elevator Lift
To give passengers a good impression of the whole building, our designers always try their utmost to find the most suitable and elegant panoramic elevator.

Person	Speed	Internal car size	Door size	Internal car size				Pit depth	Overhead	Power
no.	m/s	CWxCDxCH(mm)	OPxDH	SW(min)	SD(min)	SW(max)	SD(max)	(mm)	(mm)	(kw)
10	1.0	1300x1600x2400	800X2100	2300	2250	2700	2650	≥1800	≥4400	5.5
	1.5							≥1900	≥4500	8.3
	1.75							≥2000	≥4600	9.6
13	1.0	1400x1800x2400	900X2100	2400	2400	2800	2800	≥1800	≥4400	6.7
	1.5							≥1900	≥4500	10
	1.75							≥2000	≥4600	11.7
15	1.0	1500x1900x2400	900X2100	2400	2450	2800	2850	≥1800	≥4400	8.7
	1.5							≥1900	≥4500	12.8
	1.75							≥2000	≥4600	14.8
18	1.0	1600x2000x2400	1000X2100	2600	2600	3000	3000	≥1800	≥4400	9.3
	1.5							≥1900	≥4500	13.9
	1.75							≥2000	≥4600	16.1
21	1.0	1750x2150x2400	1000X2100	280	2800	3200	3200	≥1800	≥4400	11
	1.5							≥1900	≥4500	16.4
	1.75							≥2000	≥4600	19.2

Features
1. Safe and reliable
Our passenger elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Space configurability
From the view of space saving, Our passenger elevator make new layout of machiine room, improved the space availability.
3. Energy saving and environment friendly
Our passenger elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
4. High performance
Our passenger elevator is euipped with stable control system. Intelligent lift dispatching system provides the best solution for customer riding.
5. Free custom-made
Customers can choose their favorite and customized apperance for their own elevators. Panoramic Passenger Elevator Construction Layout Drawing
Our factory
Delivery
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 31-years professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
FAQ 1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won't break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
