Used Tires/Used Plastics/Waste Rubber/Solid Waste Pyrolysis Plant/Disposal Plant/Recycling Plant/Waste Treatment Equipment to Oil with EU Standard

Product Description

Urban Waste Recycling Pyrolysis Equipment in Waste Management with CE & ISO

Certificate
Company Brief Introduction Shangqiu Zhongqing Greentech Co,.Ltd is a professional institution engaged in the recycling and utilization of waste resources which includes scientific research, design, development, manufacturing, installation, commissioning, training and customer service. The headquarter of the company is located in Beijing. Our main equipment is waste tires equipment, waste oil sludge treatment equipment, living garbage equipment, electronic waste equipment, medical waste equipment, petrochemical waste equipment and related waste recycling equipment. We also undertake government environment project like engineering design, construction and testing date.
Product Description of Garbage Disposal Plant

Seven systems:
Pre-sorting system, plastic granulation system (cracking system), deodorization system, anaerobic fermentation system, sewage treatment system, sludge treatment system, fertilizer system.
1. Pre-sorting system: Domestic garbage is transported by transport vehicle to the unloading platform of the garbage disposal site. On the platform, the domestic garbage is pushed to the plate feeder through the forklift, and the material is uniformly fed through the feeder. (On the slab conveyor, large pieces of interference such as large quilts, large pieces of furniture, toilets, trunks, etc. are manually sorted out, do not enter the processing line, and then the garbage is transported to the manual sorting platform via the belt conveyor. This sorting worker selects large items in the garbage such as quilts, cotton clothes, large trunks, branches, long sticks, wine bottles, etc. and hazardous wastes. The garbage after manual sorting and then the garbage directly enters. Broken bag machine)? The domestic garbage is transported to the bag breaking machine. (Broken bag can tear the bagged garbage in the garbage for subsequent processing?) The bulk garbage after the bag breaking machine is transported to the drum screen through the belt conveyor for screening treatment. Before the separation, the iron in the garbage is separated by the action of the magnetic separator (saleable or other recycling). The domestic garbage after being sieved by the drum screen becomes two types, one is the sieve top material, and the other is the sieve bottom material.
The sieve material is transported to the air sorter through a high-speed belt. After passing through the air sorter, the domestic waste (the sieve material) becomes two kinds of substances, one is a light substance, mainly a plastic substance, and the other is a relatively dense one. Heavy substances (mainly what? Please give an example).
The light material enters the plastic granulation treatment system, and the heavy material passes through the belt conveyor for secondary air selection. The domestic garbage after the air selection is still divided into two kinds of materials: one is light substance, mainly plastic material, and the other is relatively dense. Large heavy matter. The light material enters the granulation treatment system and the heavy material enters the pyrolysis treatment system.
The bagged garbage is sent to the drum screener by the belt conveyor for screening treatment. According to the requirements of this process, we set the screen size of the screen of the drum screen to 50mm. The drum screener can divide the garbage into sieves larger than 50mm. And less than 50mm undersize
The material less than 50mm is mainly organic matter, and this part of the organic matter is selected by the hanging magnetic separator to select iron (caps, batteries, coins, etc.). Go directly to the composting plant for disposal.
The sieve material larger than 50mm can be selected by magnetic selection (mainly iron beverage cans and iron packaging cans), and the magnetically selected sieves are fed into the integrated wind by the belt conveyor. The machine is selected for air-selection treatment, and the comprehensive air-selection machine can select the heavy materials (bricks, tiles, glass shoes, etc.) in the sieve, and the rest are combustible mixtures (mainly containing hard plastics and textiles). , rubber shoes, rubber products, wet paper products, light plastics, etc.).

The heavy materials are manually sorted and selected for use, and then directly transported or landfilled (pulverized bricks). The combustible mixture is sent to the coarse crusher and the fine crusher by a belt conveyor and broken into a particle size of 50 mm or less, and then a belt conveyor is sent to the refining system. ???
The undersize of the trommel sieve enters the disc screen through a belt conveyor, and the iron metal is selected for data utilization through a secondary magnetic separator before entering the disc screen. After the disc sieve, the domestic waste of the undersize material is still divided into two types, one is the sieve top material, the other is the sieve bottom material, the sieve top material enters the pyrolysis treatment system, and the sieve bottom material enters the raw through the belt conveyor and the screw conveyor. Material separator. The biomass separator divides domestic garbage into two types of substances: one is an impurity substance, and the other is a slurry substance. The impurity substances enter the pyrolysis treatment system, and the slurry materials are transported to the homogenization tank through the shaft spiral, and the slurry after the homogenization tank treatment enters the subsequent anaerobic fermentation treatment system.
2. Granulation system: It mainly processes the plastic materials sorted out in the pre-sorting system, and after crushing, washing, drying and granulation, the plastic pellets produced can be used as industrial raw materials.
(Cleaning system): The sorted plastic material (after drying) is directly sent to the batch cracking equipment, and after condensation, the fuel oil is obtained, which can be used for power generation, and can also be used as a fuel or directly sold for profit. )
3. Deodorization system: It mainly collects the odor in the sorting workshop through negative pressure, and the collected odor is discharged after being treated by the deodorization system. Deodorization systems include: atomization and deodorization, Light Lifting Smelly, biological deodorization and spray deodorization.
4. Anaerobic Fermentation System: The main treatment is the separation of the organic pulp from the anaerobic fermentation system to produce biogas for heat generation, purification or heat production. The produced biogas slurry enters the sewage treatment system, and the generated biogas residue enters the fertilizer production system.
5. Sewage treatment system: The treatment of biogas slurry, through the biological reaction tank, through the activated sludge method to achieve the goal of sewage treatment, to achieve the reuse of water and discharge standards.
6. Sludge treatment system: The sludge produced by the sewage treatment plant is combined with the two systems of anaerobic fermentation and sewage treatment, and finally enters the fertilizer production system to realize resource utilization.
7. Compound Fertilizer Plant: The biogas residue is treated. After the dewatering and drying, the biogas residue is used as raw material to produce organic fertilizer and compound fertilizer.

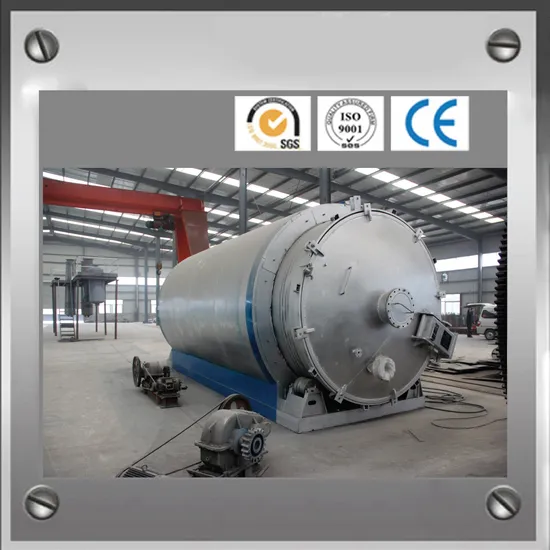

2.Outstanding Features of ZQ-7/8 Pyrolysis plant
1). Full open door design: Speedy loading in and steel pulling out; Easily cooling down after one batch finished, saving time; No leaking with special high temperature flexible graphite packing.

2). Unique Craft Condensers: High condensing efficiency with more oil output. Good quality oil, longer lifetime, and easy to clean.

3). National Patent Unique Smoke Scrubbers: More efficient removal of the acid gas and dust of the smoke by neutralization, purification and absorption, environmental friendly without pollution.

4). National Patent Carbon Black Discharging System: Speedy fully enclosed Auto-discharging under high temperature, avoiding carbon black pollution, saving time.

5). Automatic Submerged welding technology, ultrasonic nondestructive testing, both manual and the automatic safety devices.

6). Sync Gas Recycling System: Fully burned after recycling and utilization, saving fuel and preventing pollution.

7). Direct Heating System: Enlarging heating square to lengthen the lifespan of the reactor and easy to control the temperature.

8). National Patent, unique heat insulation shell; high efficiency temperature keeping, excellent energy-saving effect.

3. Process time of 10 tons pyrolysis plant

Process Time of 10 tons Pyrolysis Plant
Feeding	1~2h
Heating	9~10h
Cooling	3~4h
Discharging	1~2h
Steel Pulling Out	20minutes

Packaging & Shipping

1.Packaging Detail:
All the goods are packed according to export standard with no pollution:

2. Shipping Detail: 30 days after first deposit

Our Services

Pre-sales Service:
The wide product range enables us to provide our customers with machines or
Complete processing plants.Based on our customers' request and budget, our experts make efficient,
Reliable solutions.Following customers' order we produce strictly, what's more, before placing
The order every customer has the chance to visit working machines or complete plant in the site.
After-sales Service:
1.Quality warranty period: One year warranty for the reactor ,and lifetime maintenance for complete set of machines. pay the double air tickets, accommodation and food.
2.According to the requirement of the buyer, our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's workers on operation, maintenance, etc.
3.Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
