CNC Milling Machine for Metal Cutting and Slotting, Aluminum Auto Tools Changer Vh1160

Product Description

CNC Milling Machine for Metal Cutting and Slotting, Aluminum Auto Tools Changer vh1160
Product Description

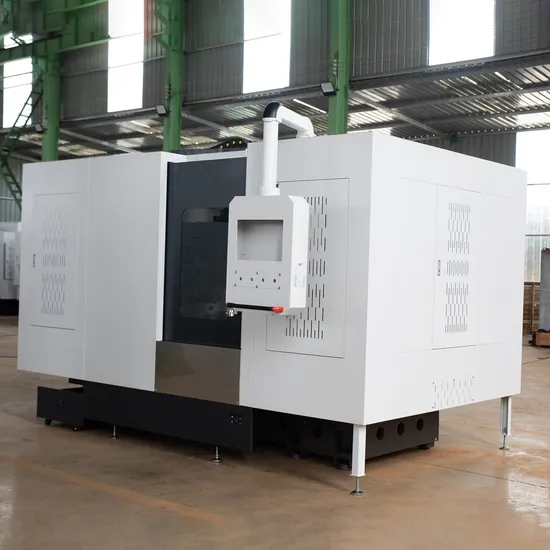

CNC Vertical and Horizontal machine center
The dual-purpose vertical and horizontal machining center offers flexibility and efficiency,
adapting to various workpiece shapes and sizes.
It is suitable for multiple industries,
ensuring precision and reducing production costs.
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.
Certifications

Specifications	Units	CNC Vertical and Horizontal machine center
Table size	mm	1000x600
X axis travel	mm	1000
Y axis travel	mm	800
Z axis travel	mm	700
Max. worktable load	kg	800
T slot(number-width-pitch)		7-22x125
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40
Main motor power	kw	11/15
X/Y/Z rapid traverse speed	m/min	36/36/36
Cutting feed speed	mm/min	1-10000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	650
Distance between spindle nose and worktable surface	mm	120-720
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max. tool diameter	mm	φ78( Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Machine weight	kg	8000
Overall dimension	mm	2900*1500*2300

Detailed Photos
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 6000rpm , can enlarge to 8000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use SKF or NACHI bearing,
2. Coupling R+W directly connected .
Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
