Wholesale High Precision Cutting Tool Inspection Optical Microscope for Quality Check
Basic Info.
Model NO.
Lm-HD2K-II
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
LED Light
Shape
Single-lens
Usage
Inspection
Principle
Optics
Principle of Optics
Polarizing Microscope
Model No.
Lm-HD2K-II
Weight
18.5 Kg
Working Height
105 mm
Inspecting Range of Tool
0.1~15mm at Diameter
View Range
1~15 mm
Transport Package
Vacuum, Moistureproof in Wooden Case
Specification
Microscope
Trademark
QY
Origin
China
Production Capacity
500000
Packaging & Delivery
Package Size
500.00cm * 500.00cm * 500.00cm
Package Gross Weight
18.500kg
Product Description
Product Description QY Precision specializes in design and production of high precision metal parts and components.Focus on industry and action on demand, to be your trusted partner is our mission.Desktop Optical Microscope for Cutting Tool Inspection Surface Quality Control LM-HD2K-II Specification
| Item | Parameter |
| Resolution Ratio | 1920*1080 |
| Display Color | Black and White / Colorful |
| Focusing mechanism | 0~42 mm |
| Column Size | Height:330 mm Diameter:25 mm |
| Fixed Base | Made from Aluminum oxide material Size:400*300*10(mm) |
| Center Working Distance | 120 mm |
| Input Voltage | AC100~240 V |
| Lens focus process | Vertical Z axis: 330mm Horizontal X Y axis: 50*60mm |
Product Advantage

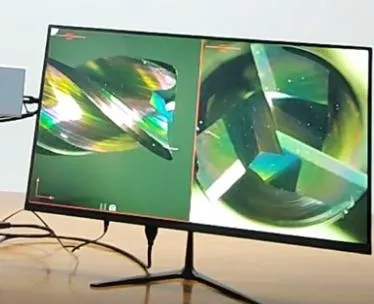

How to Close Inspection of cutting tools? With high-definition microscope, observation of metal cutting tools in close and clear sight is possible. You can watch the full details of cutting tool, measure its parameter, and even check for potential issues, such as edge wear. The tool holder supports holding a large range of different cutting tools, from 0.5 to 15mm diameter. Besides real-time inspection, screenshots and video recording is also available to save as important notes whenever it might be needed.
