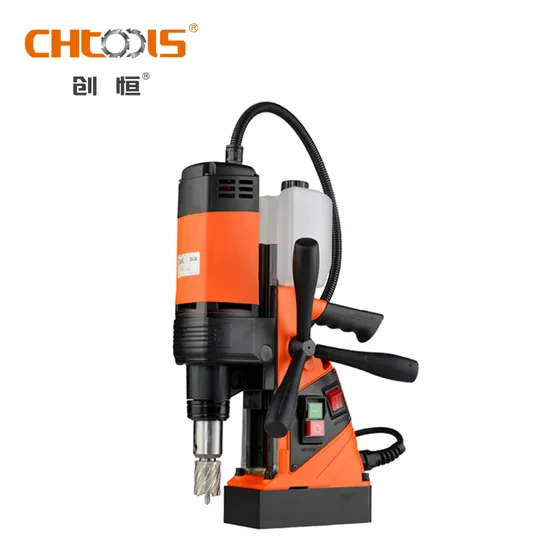

Mag Drill for Annular Cutter Magnetic Drill Machine

Product Description

Application:
Magnetic drill machine is applicable to steel structure drilling, shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construction, large equipment maintenance and all the pipeline engineering.

Product Type	DX-35	DX-50
Stroke	118mm	170mm
Magnetic base bize	167*84*44mm	210*100*45mm
Input power	1100W	1500W
The max cutting depth	50mm (2")	75mm
The max cutter capacity diameter	35mm (1-3/8")	50mm
Motor can adjust the height to	210mm	130mm
The max diameter of twist drill	13mm	32mm
The min cutter depth	5mm	5mm
Magnetic adhesion	10000N	15000N
The type of shank	19.05mm (3/4")	MT3
Total weight	11.0kg	19kg
Load speed	450rpm	250/450rpm
Countersunk drilling	10-35mm	/

1.	Tilt protection design for motor air Inlet avoid liquid or debris falling into the inside of the motor.
2.	Two-way sliding rails: special process of Hard wear-resisting, makes the wear-resisting performance increased more than 2 times, Is the guarantee of lower supplies. Two-way sliding rails, which make the motor height be adjustable according to the different requirement. Stroke up to 210mm. Rail positioning function, which can make the motor stop at any position to prevent self-rig decline and damage cutter.
3.	Design of internal self-lubricating function ensure longer life of gear.
4.	Automatic internal cooling system, external cooling ring design to prevent water overflow into the gear box, the overall design makes the appearance more beautiful.
5.	Design of overall aerial lifting holes and insurance rope holes guarantee double protection for the safety of the aerial personnel and equipment.
6.	Design of overall tilt body ensures its overall rigidity, and improve drilling accuracy.
7.	Magnetic bottom wear design, which delays the wear of magnet bottom and extend service life. Magnetic base with maximum adhesion up to 10000N ensures the safety and reliability during drilling operations.

Our company established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. We concentrate on innovation, and our R&D department keeps improving existing products and developing new products, to adapt to the demands of customers.
We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory.
We also own top detecting instrument in the world, conducting a series of detections to raw materials, heat treatment, and cutting tools. For you, which means: The most reliable products supply and the fastest delivery time.
For 26 years, the company has won over one hundred honors successively.
In future, we will continue to devote to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on from your deep heart.
