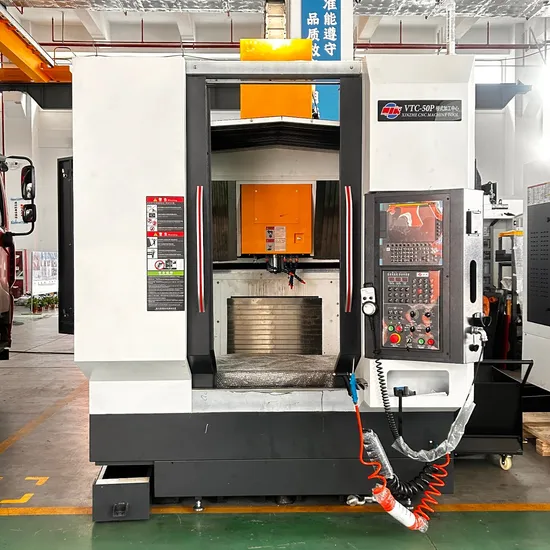

High Quality CNC Vertical Machining Center Vtc50p High Efficiency CNC Milling Machine

Product Description

Product Parameters
VTC50P

Name		Unit	Specifications	Note
Process range	Three-axis travel (X/Y/Z)	mm	600/500/450
	Distance from spindle end face to table surface	mm	120~570
	Distance from spindle centre to crossrail surface	mm	580
Table	Table size (width x length)	mm	500×800
	Table T-slot	mm	5-18H8
	Maximum load	kg	500
Spindle	Spindle speed	rpm	80~12000
	Spindle taper hole (shank)		ISO40 (BBT40)
	Spindle motor (S1/S2-30min)	kw	5.5/7.5
Speed	Rapid traverse speed (X/Y/Z)	m/min	24/24/24
	Cutting feed speed	mm/min	1~15000
	X/Y/Z axis feed motor power	kW	3.0/3.0/3.0
Tool magazine	Tool magazine capacity (umbrella servo tool magazine)	eva	16
	Maximum tool diameter/length/weight		Æ70/210mm/8kg
	Tool selection mode		Arbitrary knife selection
	Tool change time (tool-tool)	S	6
Accuracy	Positioning accuracy (X/Y/Z)	mm	0.008
	Repeat positioning accuracy (X/Y/Z)	mm	0.005
Other	Maximum drilling diameter (45 steel)	mm	Æ20
	Maximum tapping diameter (45 steel)	mm	M16
	Milling capacity (45 steel)	cm³/min	200
	Control System		FANUC 0i-MF(5)
	Air Source Flow / Air Pressure		500L/min 6~8bar
	Power supply capacity	kVA	25
	Cutting fluid tank volume	L	320
	Machine exterior dimensions (L×W×H)	mm	1500×3430×3250

Standard Accessories:

1	24 disc tool magazines	5	Working light	9	Electric cabinet heat exchanger	13	Foundation screws and pads
2	Workpiece Cooling System	6	Tri-color warning light	10	Network transmission and CF card function	14	Tools and Toolboxes
3	Automatic lubrication system	7	cleaning air gun	11	Rigid tapping	15	Iron chipping disc and chip storage box
4	Spindle blowing device	8	Spindle output water	12	Fully enclosed protective cover	16	Portable chip blowing air gun

Product Feature:
The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit, the heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models. The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.

1	24 disc tool magazines	9	Electric cabinet heat exchanger
2	Workpiece Cooling System	10	Network transmission and CF card function
3	Automatic lubrication system	11	Rigid tapping
4	Spindle blowing device	12	Fully enclosed protective cover
5	Working light	13	Foundation screws and pads
6	Tri-color warning light	14	Tools and Toolboxes
7	cleaning air gun	15	Iron chipping disc and chip storage box
8	Spindle output water	16	Portable chip blowing air gun

Detailed Display:
Certifications
Packaging & Shipping
Company Profile

Nanjing Xinzhe CNC Machine Tools Co. Located in Guabu CNC Industrial Park, Luhe District, Nanjing. The company is mainly engaged in the research and development, manufacturing, technical consulting, sales and service of CNC machine tools, intelligent equipment and intelligent manufacturing systems. The company's main products include vertical machining centers, horizontal machining centers, gantry machining centers, five-axis machining centers, vertical lathes and a variety of special machine tools, intelligent manufacturing line and intelligent manufacturing workshop planning and construction of a variety of CNC products.
TRAINING AND INSTALLATIONXinzhe Factory supply the installation documents, if easy training can make video meeting by free. If need to to customer's factory to install and train, Xinzhe factory will arrange engineers go to user's factory , the cost of round-trip air ticket, board and lodging will by user, 200.00USD/days salary for each engineers. AFTER SALES 1. From the BL date, the manufacturer will implement the "three guarantees" service for the product for one year (if the user causes damage due to his own reasons, an appropriate cost fee will be charged)
2. When the machine tool breaks down, the manufacturer can accurately judge the cause of the failure and deal with it immediately after receiving the feedback information from the user; if the cause cannot be determined at that time, a reply will be given within 24 hours; for those who need to send personnel to the scene to deal with it, According to the distance of the road, send someone to the place within a week until the fault is resolved.
FAQ

Q1 A1	How can I choose the most suitable machines ? If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you. If you are the trading company, you can tell us your customer's request or we will suggest you our best selling model for you.
Q2 A2	Where is our factory located? How can I visit there? Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us. We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
Q3 A3	How is the warranty? We will supply standard ports and accessories with our machine when shipment. Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
Q4 A4	Do you have a stock? Our Chinese market order is very good, we have many machines produce everyday and delivery everyday. Our fastest delivery time for 1~5 sets will be within one month.
Q5 A5	How about your quality? We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system. Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL. 90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6 A6	Do you have professional engineers? Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
Q7 A7	What is the package? Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q8 A8	What's your main products of your company? We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
Q9 A9	What's the MOQ? One set. The big discount will start from three sets.
Q10 A10	What's the Payment Terms ? T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.
Q11 A11	What is the charge of installing and commissioning? Most of machines you can install well according to our drawing. For some machines, it need our technician to go to your local site and help you install and commission machines. At the same time, our technician will train your workers, it will table about 7~15days for different machines. The return air-tickets, accommodation, food, salary (USD100.00/day for each technician), etc will be born by the end-user.
