Product Description

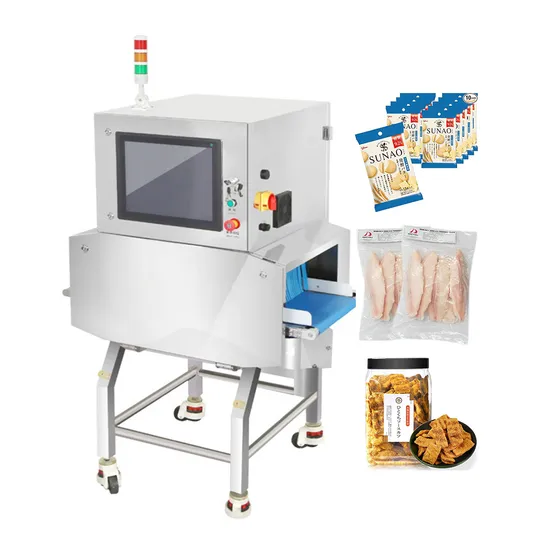

JZXR XR-500D High Quality Digital Fast X-Ray Inspection System for Food Industry at Affordab
Introduction:
Juzheng X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.
- Safety in design
- Easy-of-use
- Simple maintenance
- Low cost & Fast dispatch
- Professional and timely after-sales service
XR-500D series is used for detecting contaminants inside of the small packaged products. Metal and non-metal impurities include ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, had rubber and hard plastic, even for products wrapped in aluminum foil or metallised film and etc. The foreign object is detectable by its density. The greater density they have, the easier they can be found. That is why we normally use X-RAY inspection system to detect even the most tiny contaminants.
WHAT THE SPECIFICATIONS OF MACHINE?

Model#	XR-500D
X-ray source	Standard: 150W, 80kV. Optional: 350W,100kV
Tunnel size(W*H)	440*200mm
Max sensitivity	SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm
Conveying speed	20-60 m/min
Screen	21.5inchfullcolortouchablescreen
Interface for data	LAN port,USB port
Working environment	Temperature:-10-40ºC(Cooling:industrial air condition),Humidity:30%-90%,No frost(humidity control:dehumidifier)
X-ray leakage	<1µSv/hour
Protective mode	Protective soft curtain(removable)
Alarm	Standard: Sound and light alarm Optional: Stop / Rejection system
Power supply	AC220V ±10% 50/60Hz,1.5kVA Max
Material	SUS304
Protective Mode:	6 layers of non-lead food grade soft curtain

About Us Send Inquiry View More Products X-ray Inspection System for Big Packaged Food High Precise checkweigher with Rejector XR-980 Conveyor Metal Detector with Rejector XR-180C Vertical Fall Metal Detector
FAQ

1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.

2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.

3.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .

4.Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers

5. What's your main product?
We professional in Metal detector. X ray machine and other related electronic products and machines.
