China High Quality Stainless Steel Eo Sterilization Machine Cabinet Ethylene Oxide Sterilizer

Product Description

Company Profile
Henan Angel Medical Instruments Co., Ltd. is a wholly-owned subsidiary of Henan Huatai Intelligent Equipment Group. The group is a comprehensive group company integrating R & D, manufacturing, sales and installation of cereals and oils machinery, medical instruments and environmental protection equipment.
Product Description

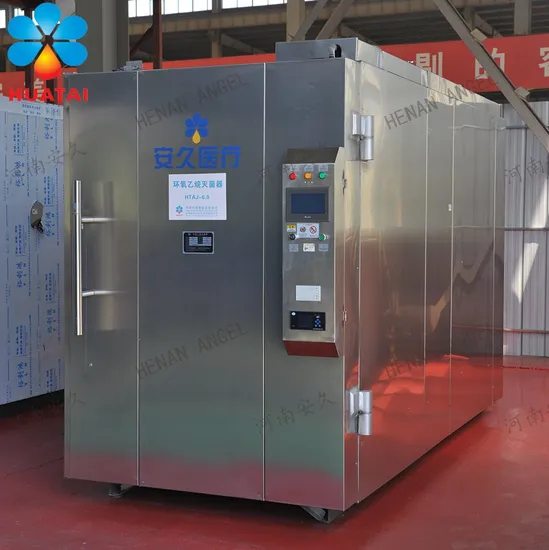

Ethylene oxide sterilizer
HTAJ2 series ethylene oxide sterilizer is a low temperature sterilization equipment HTAJ2 series large-scale ethylene oxide sterilizer is a kind of low-temperature sterilization equipment: This product is designed by using advanced computer technology, automation technology, welding technology and process on the basis of absorbing the advantages of similar products domestic and overseas.
Parameters:
Air replacementAutomatic ventilation, air exchange frequency and interval can be set freely
Automatic control systemOne-click start to end, the whole process is automatically completed with print record
Display status Display temperature, humidity, pressure, sterilization time, residual gas treatment time, number of times
PrinterThe whole process of sterilization information record printing, in order to verify the check.
Humidity sensorThe built-in humidity sensor automatically detects the humidity in the cavity to ensure that the humidity in the cavity is not lower than 45% RH.
Pressure sensor The inner pressure sensor automatically detects the pressure inside the cavity to ensure the accuracy and efficiency of the pressure.
Temperature sensorThe built-in temperature sensor automatically detects the cavity temperature to ensure that the cavity temperature remains within the accurate range of 50 ºC ±3 ºC.
Humidifying systemPulse humidification in the vacuum state ensures that the humidity in the cavity is uniform and controllable, and the humidity of the sterilizing chamber should be controlled within the range of 45- 80% relative humidity.
Residual gas treatment unitFiltration efficiency of filter for particle diameter ≥ 0.3 μ m,not less than 99.5%.
Sterilization chamber leakage rate The leakage rate is measured under the condition of no-load and sterilization room temperature, the test pressure is -50kPa, and the measurement time is 1h. [Vacuum rate] Under no-load conditions, the time for the disinfection cabinet to reach -60kPa from normal pressure should be ≤30min. [Vacuum system] The oil-free vacuum pump is used, which is simple and convenient, the vacuum rate is fast, and the service life is long. [Heating system] It adopts explosion-proof electric heating device, which is more convenient and quick. [Tray rack] Use 304 stainless steel tray rack.
Sterilization chamber leakage rate] With over-voltage and over-temperature protection function, it is more safe and reliable. [Casters] Yes. [Alarm system] There is a high temperature alarm system and an ultra-low pressure alarm system; when the disinfection temperature of the disinfection room exceeds 59 ° C, it should be able to sound an alarm. [Category] Class II medical instruments.
Application:
Hysteroscopy, Laparoscopy, Laryngoscope, Probe, Rigid Endoscope, Hose Endoscope, Ophthalmic Lens, Fiber Optic Cable, Cranial Pressure Sensor, Cold Therapy Probe, Prostatectomy Device, Esophageal Dilator, Electrocautery Devices, defibrillation electrodes, laser head metal, glass, silicone, Chinese medicine and western medicine, human implants, masks, DNA, etc.
(1)Installation requirements of ethylene oxide sterilizer:
1)The ethylene oxide sterilizer must be placed in a well-ventilated place, and it must not be placed near a fire source.
2)In order to facilitate repair and regular maintenance, 51cm space should be reserved on each side (including the top) of the ethylene oxide sterilizer.
3)Special exhaust pipes should be installed and completely isolated from other exhaust pipes of the building.
(2)Ethylene oxide safety protection principles and precautions:
1) Keep ethylene oxide sterilizers and cylinders or cans away from sources of ignition and static electricity.
2) Ethylene oxide storage should be free of ignition sources, no rotating motor, no sun, good ventilation, and the temperature is lower than 40 ºC, but it should not be placed in the refrigerator. Dispose of in strict accordance with the relevant national storage requirements for flammable and explosive materials.
3) Do not use too much force when administering or opening the bottle, so as not to spray the liquid.
4)Monitor the air concentration of the ethylene oxide working environment every year.
5)Ethylene oxide staff should be trained in expertise and emergency management.
