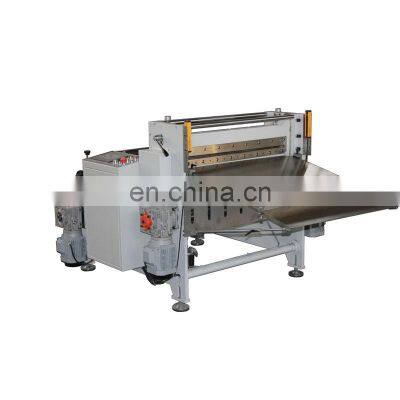

EPE Foam Roll to Sheets Cross Cutting Machine

Product Description

Product Description
EPE Foam Roll to Sheets Cross Cutting Machine Functional Characteristics:1.DELTA servo motor pull the material,high precision.2.MITSUBISHI PLC with touch screen to set any length,quantity,speed. 3.3 inch inflatable shaft for unwinding.4.Pulling roller coat thick PU rubber and won't scratch the material.5.Polished and anodized aluminum guiding roller,very smooth and never harm the material.6.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly. 7.Optional:Electrical static eliminator to remove static electricity.Panasonic photocell to track the printed mark for precise cutting.etc Purpose:This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,etc. Technical Data: ModelDP-360DP-500DP-600DP-800DP-1000DP-1400Max Feeding Width ( mm )36050060080010001400Max unwind roll diameter(mm )600600600800900800Max unwind roll weight(kg)40404050-6050-6050-60Unwind shaft diameter3 inch or 6 inch3 inch or 6 inch3 inch or 6 inch3 inch or 6 inch3 inch or 6 inch3 inch or 6 inchspeed ( times/minute )40 (Cut 450mm) 70 (Cut 320mm)50-80 (Cut 600mm)50-80 (Cut 600mm)50-80 (Cut 600mm)80 (Cut 100mm)Total Power1.5kw1.5kw2.5kw3kw3kw4kwPrecision ( mm )±0.10 ±0.10 ±0.10±0.10 ±0.10 ±0.10Voltage380V 50HZ380V 50HZ380V 50HZ380V 50HZ380V 50HZ380V 50HZElectrical listing :Touch Screen Programmable Controller Servo Driver Servo Motor Motor of cutting knife AC Contactor Solid State Relay 20AFrequency converter
