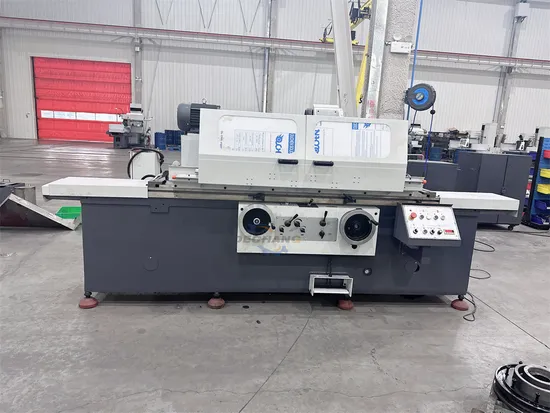

Metal Surface Universal Cylinderical Grinding Machine M1463

Product Description

Metal Surface Universal Cylinderical Grinding Machine M1463
Product Description
Product main technical specifications :

Specifications		Units	M1420	M1432B	M1432H	M1450	M1463
General capacity	Distance between centers	mm	500/750	1000/1500	2000/3000	1500/2000/3000/4000	2000/3000/4000,5000
	Center height	mm	125	180	180	270	370
	Dia. Ground(O.D)	mm	5~200	8~320	8~320	25~500	30~630
	Dia. Ground(I.D)	mm	13~80	30~100	30~100	30~200	30~250
	Max. length ground(I.D)	mm	125	125	125	320	320
	Max. weight of work piece	kg	50	150	500	1000	3000
Work head	Swiveling angle	°	+90°	+90°	+90°	+90°	+90°
	Center taper	MT	4	4	5	6	Metric 80#
	Spindle speed /Stepless	r/min	Spindle speed 63/125/250/500 Stepless 30-300	50HZ:26-260	50HZ:26~260	50HZ:20~224	50HZ:14~140
Wheel head	Wheel size (ODxWxID)	mm	400*50*203	400×50×203	500×50×203	500×75×305	600×75×305
	Peripheral velocity	m/s	35	35	35	35	35
	hand feed per rev	mm/rev	Rough:1 precision:1	Rough:2 precision:0.5	Rough:2 precision:0.5	Rough:4 precision:0.5	Rough:4 precision:0.5
	hand feed per gra	mm/gra	Rough:0.002 precision:0.001	Rough:0.01 precision:0.025	Rough:0.01 precision:0.025	Rough:0.02 precision:0.0025	Rough:0.02 precision:0.0025
Internal Grinding device	Spindle speed	r/min	9245/12250/14848/19600	10000	10000	10000	10000
	Wheel size (OD*W*ID)	mm	Max.:50*32*16 Min.:12*15*5	Max.:50*25*13 Min.:17*20*6	Max.:50*25*13 Min.:17*20*6	Max.:175*32*32 Min.:30*25*10	Max.:175*32*32 Min.:30*25*10
Table	Max. swiveling angle of table (Clockwise)	°	9° (500) 8° (750)	3°	3°	3°(1500) 2°(2000/3000) 1°(4000)	2°(2000/3000) 1°(3000/4000/5000)
	Max. swiveling angle of table (Anticlockwise °)	°	9° (500) 8° (750)	7° (1000) 6° (1500)	5° (2000) 3° (3000)	6° (1500) 5° (2000) 3° (3000) 2° (4000)	4°(2000) 3° (3000) 2°(4000) 1.5° (5000)
	Longitudinal speed range of table	m/min	0.1~3	0.1~4	0.1~3	0.1~3	0.1~2.5
Tailstock	Center taper	MT	4	4	5	6	Metric 80#
	Quill travel	mm	25	30	30	70	70
Motor	Wheel head motor power	kw	5.5	5.5	7.5	5/7.5	7/11
	Internal grinding motor power	kw	0.55	1.1	1.1	1.5	1.5
	Workhead motor power	kw	0.75	1.5	1.5	4	15
Machining accuracy	Roundness	μm	3	2.5	3	2.5(1500) 3(2000/3000/4000)	3
	Cylindricity	μm	5(500) 8(750)	8	8	8(1500/2000/3000) 12(4000)	8(2000/3000) 12(4000/5000)
	Roughness	μm	Ra0.16	Ra0.2	Ra0.32	Ra0.32	Ra0.32
Machine	Machine weight	kg	3000 (500) 3300 (750)	3800 (1000) 4000 (1500)	6200 (2000) 7200 (3000)	9500 (1500) 10000 (2000) 11700 (3000) 14000 (4000)	18000 (2000) 19000 (3000) 23000 (4000) 26000 (5000)
	Overall dimension(L * W * H)	mm	2030*1630*1750 (500) 2930*1630*1750 (750)	3260*1900*2050 (1000) 4260*1900*2050(750)	5800*1900*2050 (2000) 7800*1900*2050(3000)	5430*2250*2100 (1500) 5830*2250*2100 (2000) 7960*2250*2100 (3000) 9960*2250*2100 (2000)	7200*2400*2260 (2000) 8760*2400*2260 (3000) 11000*2400*2260 (4000) 12700*2400*2260 (5000)
