Premium Electric Hydraulic Surgical Operating Table for Efficiency

Product Description

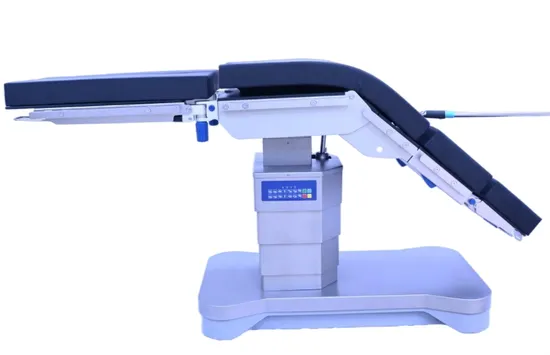

Product Description Premium Electric Hydraulic Surgical Operating Table
The operating table top adopts a modular design and is customized for different surgical operations. When hospitals face diversified surgical needs, they can purchase specific modules to meet the surgical needs, which greatly reduces the hospital's procurement costs. Disassembly and assembly between different modules adopts one-touch operation, which is simple, convenient and efficient.
The maximum load-bearing capacity can reach 360kg;
The translation distance range is 350mm, which meets the needs of surgical perspective;
The minimum operating table is 570mm, which meets the needs of neurosurgery and other surgeries;
The highest operating table is 1070mm, which meets the needs of orthopedics and other surgeries;
14 kinds of electric actions, including: electric waist bridge, table lifting, head and foot tilt, etc.; The controller uses Bluetooth technology, which makes the control unobstructed and safer;

The main technical parameters

Table front and back tilt angle	Front tilt≥35°,Back tilt≥35°
Table left and right tilt angle	Left tilt≥25°,Right tilt≥25°
Back plate folding angle	Upward bend ≥75°,downward bend ≥40°
Head plate folding angle	Upward bend≥45°,downward bend≥90°
Leg plate folding angle	Upward bend≥20°,downward bend≥90°
Table surface Specification	Length≥2000mm,Width≥500(excluding side guide rails)
The minimum operating table	≤570mm
Waist plate rise	≥120mm
The translation distance	≥350mm
Lifting stroke	≥500mm

Detailed Photos
