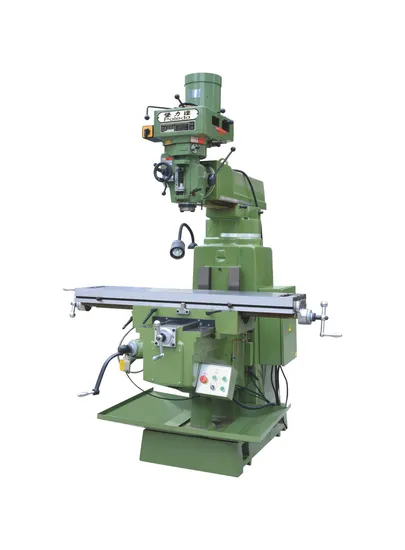

Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine with Efficient Operation, China

Product Description

Introducing the 5M Vertical Metal Turret Milling Machine, a universal marvel engineered in China. As industry leaders, we continually strive for excellence, ensuring that there is always room for improvement, making the best even better. Experience unparalleled precision with the 5M Vertical Metal Turret Milling Machine, designed to meet all your milling needs.
Proudly presenting the China Universal Milling Machine, crafted with the utmost professionalism for superior performance.
Our philosophy: There is always room for improvement. Excellence is a journey where the best can always get better.
Product Description
Product Parameters
In-depth Product Introduction
The turret milling machine, also known as the rocker arm milling machine, offers unparalleled versatility. Featuring a compact structure and small size, this machine boasts high flexibility. The milling head can rotate 90 degrees in both directions and 45 degrees front and back, while the rocker arm extends telescopically and rotates 360 degrees on the horizontal plane. This design significantly enhances the machine's operational range, making it exceptionally efficient.
Composition and Build
Crafted from high-grade cast iron, the body of our universal radial milling machine ensures high precision and longevity, thanks to artificial aging treatment. The lifting platform features rectangular guide rails with multiple contact surfaces and robust feet. After undergoing high-frequency treatment and fine grinding, the slide is plastinated to deliver exceptional motion accuracy and durability. The spindle, made of chrome-molybdenum alloy with precision angular contact bearings, undergoes tempering and fine grinding processes to provide strong cutting force and high precision.
Applications and Uses
The turret milling machine is a versatile, lightweight universal metal cutting tool. It offers both vertical and horizontal milling capabilities, ideal for machining flat surfaces, inclined planes, grooves, and splines on medium and small parts. This machine finds extensive applications in machining, mold manufacturing, instrumentation, and various other industries.
Mechanical Characteristics of the Turret Milling Machine
The casting is made of m Mihanna cast iron, renowned for its excellent rigidity, minimal deformation, and superior stability.
The main shaft, crafted from chrome-molybdenum alloy, undergoes tempering, heat treatment, and precision grinding. It is paired with precision bearings for robust cutting force and outstanding accuracy.
The milling head gear box, constructed from cast iron, offers excellent rigidity, low deformation, and enhanced gravity, leading to more precise cutting and increased durability.
The three-axis screw features an advanced phosphorus bronze screw cap, ensuring wear resistance and extended service life.
The XY shaft slide, treated with high wave heat, exhibits superior wear resistance and longevity. The XY axis interfaces are equipped with imported wear-resistant plates, facilitating easy operation and minimal wear, which adds to the machine's durability.
An integrated lubrication system ensures uniform oil distribution across all points, guaranteeing smooth sliding operation.
This machine is 100 kg heavier than similar products, providing added stability.
Featuring a powerful 5hp motor and a high-rigidity, precision NT40 spindle, it is highly suitable for handling large parts and performing heavy-duty cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
