Paper Tape Printing Machine, for Paper Tube or Corner Protector Making

Product Description

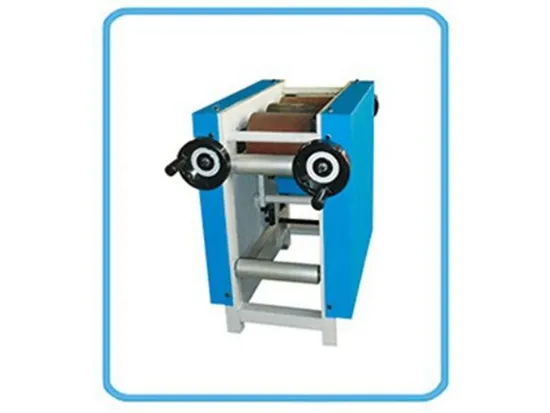

Paper Tape Printing Machine
Functional Specifications:

1) Paper Tape Printing machine is toprint on surface paper for paper tube or corner protector, inline working.2) The machine is controlled by PLC, touch screeen man-machine interface, simple setting and convenient operation.

Paper Tube Making Machine
1) The main body is made of thick and heavy steel plate after CNC cutting and welding. The frame is stable and not easy to deform, and the vibration is small.
2) The main drive uses hard tooth surface full oil bath chain drive, low noise, low heat, high speed, high torque.
3) The main motor adopts vector type high torque inverter speed regulation.
4) CNC synchronous chasing system, the cutting table is driven by precision ball screw and high performance servo motor.
5) Equipped with pulse fixed length control and feedforward compensation function to ensure the same cutting length under different host running speeds.
6) Using imported PLC numerical control system control, accurately improve the overall efficiency.
7) Configure a new operation panel and a large-size color touch screen man-machine interface operation. .
8) The overall paper feeding frame, rubber-coated rubber frame and paper guiding device integrated linkage device, the efficiency is improved by 60%.
9) Modular electrical layout design, use, maintenance, maintenance is more convenient and more scientific.
Paper Corner Protector Machine
1) Coaxial transmission. All transmission parts were thermal refined and surface hardened.
2) Double hydraulic cutting system for transmission. All transmission gears are abraded and pared of high quality material after heat treatment.
3) Touch screen and servo system control the operation, cutting precision is ±1mm.
4) Automatic alarm system show the fault position, guarantee safe operation.
5) With output counting for every shift and total, no need for manual counting.
6) Convenience to change mould.
7) Automatic glue feeding with quantity setting.
Technical Parameters:

Paper Layer	3~12 layers
Inner Diameter	20~150mm
Thickness	1~5mm
Design Speed	30m/min
Length Control	PLC
Cutting Knife	6pcs round knife
Cutting Length	100~500mm
Cutting Method	CNC auto-tracking to cut
Wrapping Head	2 winding heads
Gluing Type	Double-side gluing
Control Type	Inverter control
Power & Voltage	About 11kw, 380V, 50Hz, 3-Phase (electricity power made to customer request)
Dimension	About 4ton, 18*8*2.5mm
Operator	1~3 workers
Delivery Time	About 45 working days
