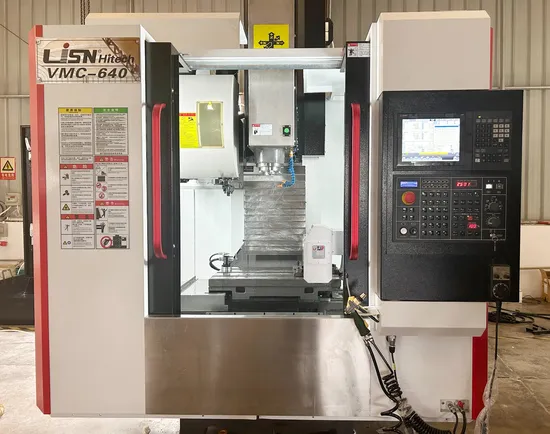

High Speed Small CNC Machining Center Vmc640 3 5 Axis CNC Machine Center Siemens/Hnc/GSK/Fanu Control Vmc 640

Product Description

Product Description

1.This vertical machining center VMC640 has the characteristics of high speed, high precision and high rigidity. The worktable size of this machine it 420x1000, and this machine also adopts high rigid bed, high precision roller type guideway, integrated bearing block and Oil-water separation design, which can greatly improve the body rigidity, ensure the machine good running accuracy, and also maintian excellent precision stability. The Z axis uses brake servo motor with no counterbalance block design to improve the driving performance of Z axis. This machine occupies a small area and also has high structral strength, thare are also a wealth of optional configuration can be installed. it suitable for processing plate, mold and small shell complex part, can complete milling, boring, drilling, tapping and cutting threads and other process.

2.Taiwan precision screw rod and Taiwan precision lock nut are adopted. The lead screw bearing adopts Japanese NSK bearing, which is directly connected with flexible coupling, with small back clearance, sensitive transmission and high precision.
3.According to the finite element analysis of the main structure, the machine base, spindle box, cross slide table, worktable, etc. are made of high-quality HT250 precision casting, which can ensure the stability of long-term processing after secondary failure treatment.
Detailed Photos
Product Parameters

Item	Specifications	MODELS→	VMC640
Travel Range	X/Y/Z Axis Travel	mm	650/430/450
Worktable	Worktable (WidthxLength)	mm	420x700
	Max Load Bearing Of Worktable	kg	200
	T-Slot(number of SlotxSlot WidthxPitch)	mm	3x18x125
Spindle	Spindle Hole Taper	type	BT40
	Spindle Speed Range	r/min	12000
Feedrate	X/Y/Z Rapid Feed Speed	m/min	48/48/48
	Max Cutting Feed Speed	mm/min	1-12000
Motor	Spindle Motor Power	kw	7.5
Accuracy	X/Y/Z Position Accuracy	mm	0.005
	X/Y/Z Re-Position Accuracy	mm	0.003
Machine Dimension	Machine Dimension	mm	2300x2250x2450
	Machine Weight	kg	3400

Standard Configuration for VMC Series 1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 10000 RPM spindle
10.Worktable cleannig water gun
Optional Configuration for VMC Series 1. 24 disc manipulator tool magazine
2. Crawler chips remover
3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
