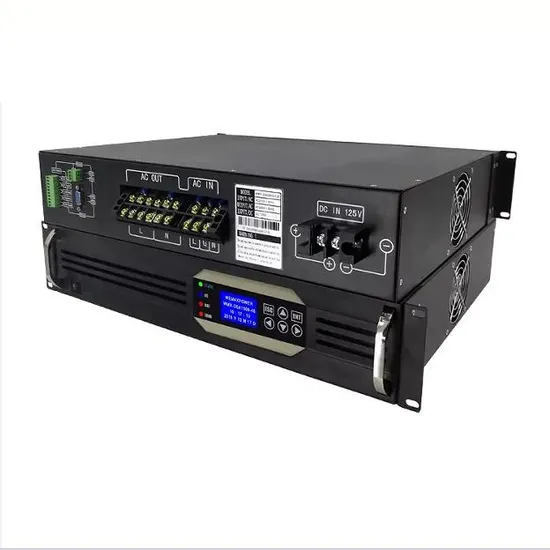

Telecom DC-AC Inverters 48V DC

Product Description

telecom DC-AC Inverters 48V DC NASN power supply pure sinve wave inverter
The LCD rackmount Power Supply Pure Sine Wave Inverter from Communication Power Inverter NASN Factory is a new generation of intelligent MCU high frequency Power Supply inverter and a standalone DC to AC inverter system for Telecom and industrial power applications. Developed and designed for the requirements of Telecom and Industrial, heavy duty application, which delivers continues true sine wave output power with high stability.Comprehensive solutions for servers, cloud computing, edge computing, 5G networks and communications infrastructure.Widely applied in communication Power systems, railway power systems, and other power systems to meet the high quality and high reliability requirements, and applicable to all the uninterrupted sine wave AC output systems that are sensitive to power interference and require reliable and clean.In addition, the inverter system offers new opportunities for energy savings by providing backup AC power.DC / AC inverters for telecommunication and communication equipment convert the DC batteries voltage to AC. NASN's Inverters are designed and built for reliability. These telecom-grade inverters provide pure ac sine-wave power for all critical network needs. we offer a wide range of inverters and converters in different capacities to integrate with DC Power Systems.
Features:
1.SPWM technology, pure sine wave AC output powers telecom equipment without performance degradation;
2.Continuous duty rated full output wattage maintained even during extended power outages;
3.Low EMI and RFI interference characteristics;
4.User-friendly Status and Diagnostic LCD/LED displays,easy to operate;
5.Utility bypass function with fast load transfer switch;
6.Remote Power Management optional via RS-232 port;
7.Optional SNMP card;
8.Comprehensive circuit and load protections over-current, over- temp, overload, reverse polarity, over voltage, low voltage
voltage;
9.Optional three working modes: AC mains first, DC inverter first, pure DC inverter;
10.Form C alarm contacts for monitoring AC Fault and DC Abnormal conditions;
11.Optional three working modes: AC mains first, DC inverter first, pure DC inverter
12.Install: 19 or 23 inch rack or standalone
Applications:
Applied to Inductive Load and Resistive Load
§Vehicle and shipboard equipment: Railway station, transportation equipment, etc.
§Industrial equipment: solar power, wind power, gas discharge lamps, etc.
§Office equipment: computer, printer, copy, scanner, etc.
§Kitchen appliances: microwave oven, induction cooker, rice cooker, etc.
§Household electrical equipment: electric fans, vacuum cleaners, lighting fixtures, etc.
Datasheet:

Technical Index(VA)		0.5K	1K	2K	3K	4K	5K	6K	8K	10K
DC input	Rated input voltage (Vdc)	220Vdc
	Rated input current (A)	N/A	4.5	9	13.5	18	22.5	27	36.3	45.4
	Allowable range of input DC voltage (Vdc)	Cutoff voltage 180V--275V Startup voltage 208V-260V
	Backward noise current	≤10%
AC by-pass input	Allowable by-pass voltage (Vac)	260V-180V(±10V)
	Rated input current (A)	2.3	4.5	9.1	13.6	18.2	22.7	27.2	36.3	45.4
	By-pass conversion time (ms)	≤5ms
AC output	Rated capacity (VA)	500	1K	2K	3K	4K	5K	6K	8K	10K
	Rated output power (W)	400	800	1600	2400	3200	4000	4800	6400	8000
	Inverter output voltage and frequency	220Vac,50HZ
	Inverter output current (A)	1.8	3.6	7.3	11	14.5	18.2	21.8	29	36.3
	Output voltage precision (V)	220±1.5%
	Output frequency precision (Hz)	50±0.1% Or 60±0.1%
	Waveform	Pure sine wave
	Total harmonic distortion (THD)	≤3% (linear load)
	Dynamic response time	5% (load 0←→100%)
	Power factor (PF)	0.8
	Overload capacity	100%-120% 60s 121%-150% 10s
	Inversion efficiency (80% resistive load)	≥85%
	By-pass conversion time (ms)	≤5ms
Working environment	Dielectric strength (input and output)	1500Vac, 1 minute
	Noise (1m)	≤40dB
	Operating environment temperature	-20ºC~+50ºC
	Humidity	0~90%, no moisture condensation
	Operating altitude (m)	≤2000
Indication	LCD display	Input and output voltage, frequency, output current, temperature, percentage, etc.
	inverter status	Normal mains, normal inversion, battery under-voltage and output overload
Mechanical size	Standard rack	347*482*88				430*482*88			470*482*176
	(Depth × Width × Height) (mm)
Protection function	DC input reverse polarity protection	Available							N/A
	Normal protections	Input under-voltage and overvoltage, output overload and short circuit protections, etc.

More details:
More Details
