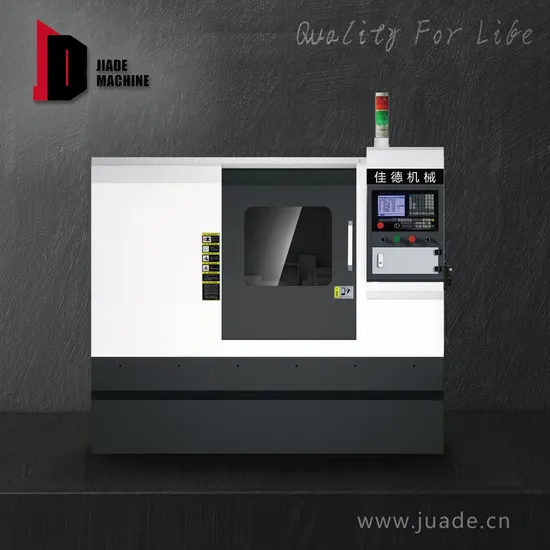

CNC High Precision Pointing Grinding Machine for Drill Bit Production
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MJX4
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
Used
Transport Package
Woodern
Trademark
Jiade
Origin
China
HS Code
8460310000
Production Capacity
500sets/Year
Product Description
Product DescriptionCNC automatic pointing grinding machine can be convenient debugged and simple operated, one worker operate multiple machines, compare to some domestic similar products, it can save about 70% electricity consumption, save 60% grinding wheel consumption, and can improve 30% output. The machine adopts the most advanced computer and electrical system and hydraulic control system, Equipped with self-developed tool grinding software, automatic grinding pointing angle. All castings of the machine are cast as a whole to maintain the stability and accuracy of the equipment.
Machine Function
Product Parameters
| Model | MJMKX5/CNC Splitter Pointing Grinding Machine NO.MJMKX5 |
| Tool size | 3mm-13mm |
| Machine construction | Single column |
| Axis of motion | X-Axis:300mm |
| Y-Axis:360° | |
| Z-Axis:300mm | |
| A-Axis:300mm | |
| B-Axis:90° | |
| Tool length | 205mm |
| Grind wheel diameter | Inner75mm Outter250mm Thickness25mm |
| Spindle type | High-precision electrical spindle |
| Drive system | Pin roller lead screw,direct drive |
| Electrical power | 15KVA |
| CNC data | 700 bus CNC,High-speed SSD,MECHATROLINK protocol, NXP-Rt1176M7 main controller |
| Machine body | High-performance cast iron |
| Machine size | Length:2170mm |
| Width:1680mm | |
| Height:1860mm | |
| Weight:3000kg |
Detailed Photos
Quality Control
Company Profile
