Qmy 4-45 Large Movable Concrete Block Making Machine Price

Product Description

QMY4-45 professional hollow block making machine
QMY4-45 block machine specification

Rated power	6.5kw
overall size	1600X1500X1700MM
cycle	45 seconds
pallets size	NO need pallets
vibration force	30KN
vibration frequency	4000/Minute
rated pressure	30 Mpa
total weight	1200kg
electricity source	380v/50HZ

Advantages of QMY4-45 block machine (for sell)
1. As is known as egg type machine
2. taking use of the three-phase, power strong
3.reasonable structure ,simple operation, time saving,
4.without pallets, reducing the cost of pallets.
5.It Is the particular model for a family of medium and small investors.

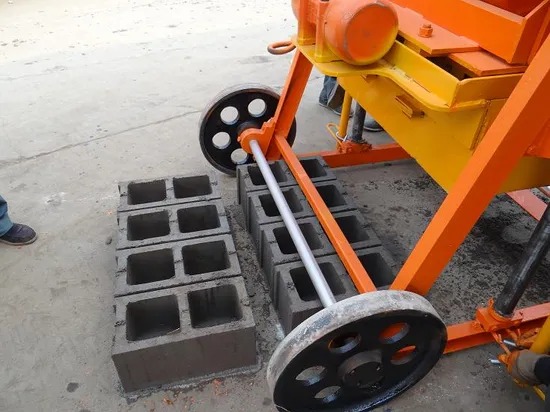

The details of machine
About hollow blocks
It can produce all kinds of hollow blocks, usually the material is cement, cryshed stone, fly ash and other industrial waste.
Material Ratio (take 400*200*200mm block as an example)

Block Strength(Mpa)	Cement (kg)	Sand and Stone (kg)	Quantity( 400*200*200)
7.5Mpa	100kg	1700kg	120pcs
10.5Mpa	100kg	1250kg	90pcs
15Mpa	100kg	1025kg	75pcs
22.5Mpa	100kg	800kg	60pcs
30Mpa	100kg	605kg	47pcs

Company profile
Henry Industrial Co., Ltd has been committed to designer, manufacturer, saler of
construction machinery ,has the domestic advanced equipments, super professional skills. With over 23 years of experience, we produce a wide range of products like hollow block machine, soil brick machine, interlocking brick machine,
paving machine, crusher, mixer, block mould and paving mould.
Among the same trade, the company took the lead in wining the ISO9001 and ISO14001environment management system certificate, CE certificate, the"China Well-Known
Trademark ", and "High and New Tech enterprise certificate" Our products have been
well sold to hundreds of countries and regions such as Europe, America, Africa, the
Middle east, Southeast Asia, etc, winning the high reputation of customers from domestic
and overseas.now has 3 offices in foreign countries.
Currently, we have perfected design of the machines, enhanced the performance of the machine, improve the production process of the machine.and in price we made a substantial adjustment. Our R&D team develops new designs every two months. I believe that your
customers will be always satisfied with our products and designs.

Qur sevice
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
