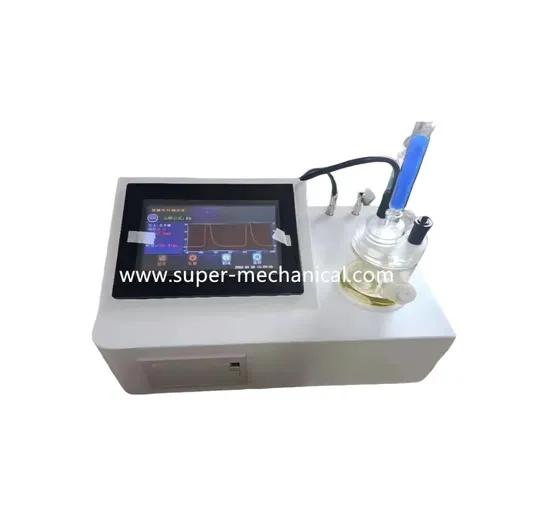

ASTM D1533 Coulometric Karl Fischer Oil Moisture Content Tester Moisture Meter Water Analyzer

Product Description

Product Description ASTM D6304 ASTM D1533 Coulometric Karl Fischer Oil Moisture Content Tester(Sp-1500)
Introduction
The micro-water meter is a newly developed trace moisture measurement and analysis instrument. The instrument uses a high-resolution color touch LCD display, which makes human-machine dialogue convenient, intuitive and easy to operate. The instrument uses a high-performance ARM processor with large data storage capacity, fast and stable operation, and excellent anti-interference performance. It has the outstanding advantages of fast detection speed and high accuracy.
This instrument uses the Karl-Fisheu coulomb titration method and can reliably measure trace amounts of moisture in liquid, gas, and solid samples. During testing, for solids that are insoluble in reagents and substances that easily contaminate electrodes and reagent reactions, corresponding solid, gas, and liquid samplers can be used for indirect measurement. It is a high-efficiency, fully automatic analytical instrument. Widely used in electric power, petroleum, chemical industry, medicine, railway, environmental protection, scientific research institutions and other industries.

Detailed Photos Product Parameters

Titration method	Coulometric titration (Coulomb analysis)
Determination range	1ug~100mg (typical value 10ug~100ug)
Electrolysis current	0-400mA
Sensitivity threshold	0.1ug
Accuracy	5ugH2O~1mgH2O ±2ug, 0.3% above 1mg H2O (excluding sampling error and environmental humidity error)
Sample type	solid, liquid, gas
Display mode	64K color high-definition touch display

Data storage	1000 test records
Status indication	dynamic curve, text display
Stirring speed adjustment	Slide the touch panel to adjust the speed
Printer	Micro thermal printer, paper width 56mm
Power supply	AC 220V±10V, 50Hz±2.5Hz(Can be customized)
Power	50VA

Operating environment temperature	5~35ºC
Operating environment humidity	≤85%
Dimensions	330mm X 260mm X 220mm (length x width x height).

Packaging & Shipping
Company Profile Located in Chongqing (one of the four municipalities directly under the Central Government of China), the electromechanical manufacturing center in Southwest of China. We specialize in the research, development, production and sales of oil filtration equipment, oil analyzers and electrical testing equipment
With 15 years of industry experience, we possess an independent R&D center and a complete technology-production-quality control system to ensure that products meet customers' requirements. The products are widely used in manufacturing, energy, transportation, construction and other industries, serving equipment maintenance and quality inspection scenarios. Up till now, we have established long-term cooperation with domestic and foreign customers in more than 100 countries.
Certifications
Other Testers General Petroleum Products Testers 1. Karl Fisher Oil Water Content Tester
2.Digital Oil Moisture Meter
3.Petroleum Products Kinematic Viscosity and Viscosity Index Tester
4.Digital Kinematic Viscosity Meter
5. Fully Automatic Petroleum Products Acidity Meter
6.Cleveland Open Cup Flash and Fire Point Tester
7.Pensky-Martens Closed Cup Flash Point Tester
8.Pour Point and Cloud Point Tester
9.Petroleum Products Density Meter
10.Copper Corrosion Tester
11.Petroleum Products Aniline Point Tester
12.Petroleum Products Colorimeter
13.Petroleum Products Carbon Residue Tester (Micro Method)
14.Petroleum Product Vapor Pressure Tester (Reid Method)
15.Total Acid Number and Total Base Number TAN/TBN Tester
16.Petroleum Products X-ray Fluorescence XRF Sulfur Analyzer Sulfur
17.Petroleum Products Online Moisture Meter
18.Online Moisture ppm Meter/ Particle Counter/ Pollution Degree Analyzer
19.Petroleum Products Saponification Number Tester
20.Micro Coulometry Sulfur and Chlorine Content Tester
21.Ultraviolet Fluorescence Sulfur Analyzer
22.Conradson Method Petroleum Products Carbon Residue Tester
23.Ramsbottom(Electric Furnace) Method Petroleum Products Carbon Residue Tester
24.Hydrogen Sulfide in Liquefied Petroleum (LP) Gases Tester (Lead Acetate Method)
25.Hydrocarbon Types in Petroleum Products Tester by Fluorescent Indicator Adsorption 2.Lube Oil Testers
1. Anti-rust Grease Salt Spray Corrosion Tester
2.Lube Oil Air Release Value Tester
3.Petroleum Products Demulsification/Water Separability Tester
4.Vehicle Gear Oil Channel Point Tester
5.Lube Oil Oxidation Stability Tester (Rotary Oxygen Bomb Method)
6. Lube Oil Foaming Characteristics Tester
7.Petroleum Products Ash Content Tester
8.Petroleum Products and Additives Mechanical Impurity Tester
9.Liquid Phase Corrosion/ Rust Preventing Characteristics Tester
10.Automatic Lubricating Oil Grease Four-ball Friction Tester
11.Lubricating Grease Sulfated Ash Content Tester
12.Water Content Tester by Distillation
13.Petroleum Products Water Soluble Acid and Alkalis Tester
14.Engine Oil CCS Cold Cranking Simulator/Apparent Viscosity Tester
15.Noack Method Lubricating Oil Grease Evaporation Loss Tester
16.Lubricating Oil Grease Evaporation Loss Tester
17.Lubricating Oil Insolubles Tester
18.Inhibited Mineral Oils Oxidation Characteristics Tester
19.Dropping Point Tester of Lubricating Grease Over Wide Temperature Range
20.Pressure Differential Scanning Calorimetry (PDSC) Lubricating Oil Oxidation Induction Time Tester
21.Lubricating Grease Dropping Point Tester
22.Lubricating Grease Cone Penetration Tester Insulating Oil/Transformer Oil Testers
1. Karl Fisher Transformer Oil Water Content Tester
2.Digital Oil Moisture Meter
3.Automatic Transformer Oil Kinematic Viscosity and Viscosity Index Tester
4.Automatic Transformer Oil Kinematic Viscosity Meter
5.Transformer Oil Acidity Meter
6.Transformer Oil Cleveland Open Cup Flash and Fire Point Tester
7.Manual Type Transformer Oil Cleveland Open Cup Flash and Fire Point Tester
8.Transformer Oil Pensky-Martens Closed Cup Flash Point Tester
9.Manual Type Transformer Oil Pensky-Martens Closed Cup Flash Point Tester
10.Transformer Oil Pour Point and Cloud Point Tester
11.Transformer Oil Density Meter
12.Digital Transformer Oil Density Meter
13.Transformer Oil Colorimeter
14.Transformer Oil Breakdown Voltage/ Dielectric Strength Tester
15.Dielectric Loss/ Volume Resistivity Tester/Tan Delta/ Power Factor Tester
16..Fully Automatic Interface/ Surface Tensiometer Transformer Tester 1.Transformer Turn Ratio Tester 2.Winding Resistance Tester 3.Transformer Load And No-load Tester TLNT 4.Transformer Turn Ratio Meter SP-T300 5.Capacitance and Dissipation Factor Tester /TanDelta Tester FAQ Q1: Why Choose Super Mechanical?
(1).Exported to more than 90% Countries
(2).Turn-key Solution is no problem
Q2: Is OEM,ODM service available?
Most of the products are available for OEM customization.
Q3:What's kind of Payment terms for customer choosing?
Cash,T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can online video inspection before shipment?
Absolutely no problem
Q5: what's the MOQ ?
MOQ: MOQ can accept 1set
Q6:What's kind of shipment for customer choosing?
Transported by DHL, UPS, Fedex, Air freight,sea freight.
We can also provide reasonable solutions according to your transportation requirements
Q7.What kind of services can you provide?
Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need; filed maintenance and repair, technical video support, etc.
