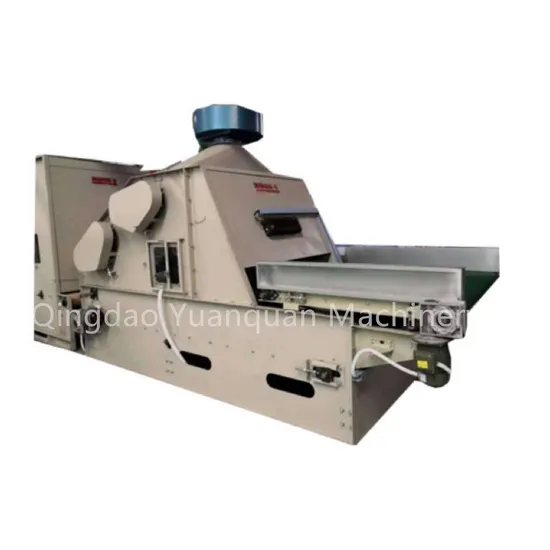

Non Woven Five Rollers Fiber Blending Machine with Weighing System
| US$19,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YQ-2000-HM
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
1 Year
Model
Yq-2000-Hm
Working Width
2000mm
Output
260-460kg/H
Dimension
5700*2500*2100mm
Feeding Method
Lengthening Leather Curtain
Weight
4000kg
Specification
5700*2500*2100mm
Trademark
Yuanquan
Origin
Shandong, Qingdao, Jiaozhou
Production Capacity
500 Sets Per Year
Packaging & Delivery
Package Size
590.00cm * 270.00cm * 230.00cm
Package Gross Weight
4000.000kg
Product Description
Non Woven Five Rollers Fiber Blending Machine With Weighing SystemProduct Description
After opening the bale, the weighed and distributed fiber is sent into the flat curtain and conveyed to the main blending bin, then the bale is opened and mixed by 5 opening rollers at high speed, and then the fiber raw material is conveyed by the conveying fan with the right amount of air volume for use in the later work. The fibers and raw materials after opening and mixing by this machine are well and evenly mixed for carding.
Product Parameters
| Model | YQ-2000-HM | YQ-1700-HM | |
| Working width | 2000mm | 1700mm | |
| Output | 260-460kg/h | 200-350kg/h | |
| Dimension | 5700*2500*2100mm | 5700*2200*2100mm | |
| Feeding method | Lengthening Leather Curtain | lengthening Leather Curtain | |
| Open-loose roller form | Welded fin type (angle welding) | Welded fin type (angle welding) | |
| Opening roller diameter | 270mm(not including fins)490mm including fins | 270mm(not including fins)490mm including fins | |
| Cotton fan impeller | Aluminum | Aluminum | |
| Weight(kg) | 4000 | 3500 | |
| Power | Feeding motor No.1 | 1.5kw(Inverter control) | 1.5kw(Inverter control) |
| Feeding motor No.2 | 3kw(Inverter control) | 3kw(Inverter control) | |
| Opening roller 1.2motor | 3kw(Industrial frequency control) | 3kw(Industrial frequency control) | |
| Opening roller 3.4.5 motor | 4kw(Industrial frequency control) | 4kw(Industrial frequency control) | |
| Blower motor | 5.5kw(Inverter control) | 5.5kw(Inverter control) | |
Detailed Photos
Packaging & Shipping
