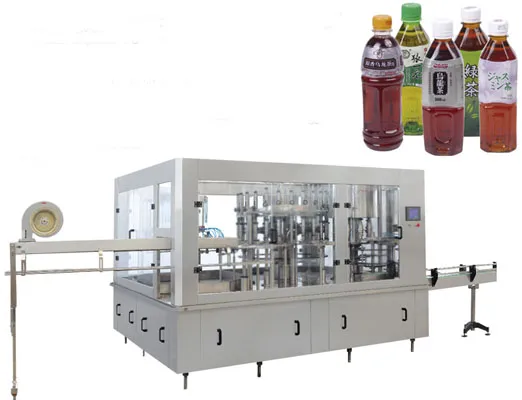

CE Approved Complete Juice Tea Bottling Filling Equipment Line Plant (RCGF24-24-8)

Product Description

Ce Approved Juice Bottling Filling Equipment Line(RCGF24-24-8)
The series equipment is used for the production of green tea, black tea and fruit juice. It integrates washing, filling, capping together. The edsign is scientific and reasonable. Its appearance is beautiful, operation and maintenance is convenient.
Characteristics:
1. The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice drink.
2. The machine integrates washing, filling, capping together.
3. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high.
4. It is good equipment for choosing hot drink filling machine.
5. The machine is adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design.
6. It's be satisfy for 95º C hereinafter hot filling technology demand.
7. It's adpot person-machine interface touch-screen, PLC, transducer etc advanced control technology.
8. It's osculant the drink material parts are adopt the SUS304 stainless steel, the machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufacturer products.

Model:	RCGF14/12/5	RCGF18/18/6	RCGF24/24/8	RCGF32/32/10	RCGF40/40/12
Production Capacity: 500ml(b/h)	3000	6000	10000	14000	18000
Filling precision	≤3mm (liquid level)
Quantity of reflux	≤10%
Suitable bottle standard:(mm)	Bottle diameter: φ50-φ92 bottle height: 150-310mm
Suitable cap standard:(mm)	Plastic screw cap, φ50-φ110
Pressure for washing bottle(Mpa)	0.18
Water consumption for washing bottle(Kg/h)	800	1600	2500	3500	3600
Gas source pressure (Mpa)	0.6
Gas consumption (m3/min)	0.25	0.3	0.4	0.5	0.7
Total power(Kw)	5.88	6.88	7.68	9.18	11.28
Overall Dimension (L×W×H, mm)	2100×1500×2200	2450×1800×2200	2750×2180×2200	3600×2800×3150	4500×3400×3150
Total Weight:(kg)	2500	3000	4000	5000	6000
