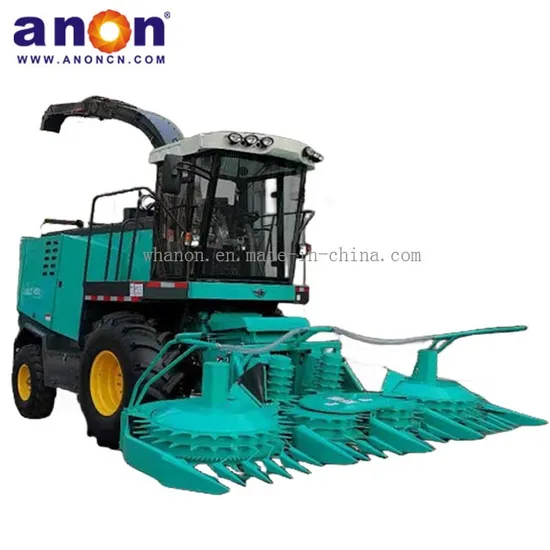

Anon Corn Stalk Silage Grass Forage Harvester Self-Propelled Silage Harvester

Product Description

ANON Corn Stalk Silage Forage Harvester Machine Grass Forage Harvester Self-propelled Silage Harvester
1. The throwing angle of the throwing barrel can be rotated between -95~95° to meet the requirements of rear and side loading
2. The wheel-type grain crushing device meets the demand for green feed in the breeding industry and improves the digestibility of feed
3. The advanced hydrostatic transmission system has good transmission efficiency, simple operation and reliable
performance. It realizes rapid back movement, braking and frequent reversing, providing operators with better comfort and controllability.
4 · AN4QZ-350/AN4QZ-450 high-horsepower engine, electronically controlled high-pressure common rail system,
low-speed torque, excellent economy, double paper air filter for silage machinery, filtering more efficient, adapt to
harsh operating environment ·
5. Floating feeding and mixing, uniform squeezing of forage, continuous and stable conveying, adapting to different levels of feeding.
6. Advanced automatic lubrication system, which can provide appropriate and accurate oil replenishment to all
lubrication points required. The lubrication process is optimized in all directions, which greatly saves maintenance
and spare parts costs
7. Equipped with 3. 5M and 4.5M large foldable headers, smooth operation, fast harvesting, can achieve wrong-line harvesting, convenient road
walking, and barrier-free field transitions.

Model	AN4QZ-350	AN4QZ-450
Structure type	Self-propelled, wheeled, full feed	Self-propelled, wheeled, full feed
Size	6500mm×3600mm×3400mm	6500×4600×3400mm
Weight	9000Kg	9600kg
Power	266kw/360hp	353kw/480hp
Rated speed of supporting engine	2300r/min	2100r/min
Cutting width	3500mm	4500mm
Crop collection header form	Straight cut header	Straight cut header
Header cutter form	Disc cutter	Disc cutter
Brake form	Drum type	Drum type
Operating speed range	3- 10km/h	3- 10km/h
Cutting length	7-29mm	7-29mm
Throwing barrel height	5500mm	5500mm
Feeding mechanism type	Feeding roller	Feeding roller
Number of feeding institutions	4	4
Straw crushing mechanism type	Roller type.	Roller type.
Throwing cylinder rotation angle	±95°	±95°
Cab type (self-propelled)	Ordinary cab	Ordinary cab
Drive mode (self-propelled)	Hydraulic drive	Hydraulic drive
Brake form (self-propelled)	Disc	Disc
Guide wheel track (self-propelled)	2050mm	2050mm
Guide wheel tire specifications (self-propelled)	12.00- 18	12.00- 18
Driving wheel track (self-propelled)	2160mm	2160mm
Throwing distance	6000mm	6000mm
Wheelbase (self-propelled)	2600mm	2600
