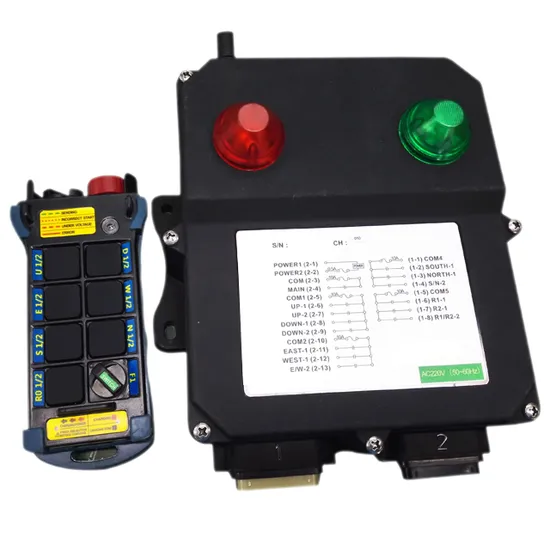

Dk Series 6 Functions Single/Double Speed Industrial Universal Crane Remote Control

Product Description

Dk Series 6 Functions Single/double Speed Industrial Universal Crane Remote Control
Product Application: Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls.

Products Features:
A. 6 single push button+1 emergency button+1 Rotary switch button.
B. When the power is not enough, the power will be cut off automatically.
C. Computer set key functions, channel, power.
D.Software set the channel, no need the crystal, through the wireless manually change the frequency,without using the other tools.
E. Wireless pairing. Easy to match the transmitter, without the help of other tools.
F. Operating distance: Up to 500m.
G. Receiver with the LED indicator.
H. Aviation plug design of the receiver, easy to maintain.
I. Frequency:425.5925-446.725MHz.
J. Rechargeable battery

1.2 Transmitter specifications
1. Dimensions: 164*77*50mm
2. Weight: 240g
3. Material: glass-fiber
4. Protection degree: IP65
5. Power supply: DC 3V (2AA Batteries)

1.3 Receiver specifications
1. Power supply: AC380V/36V/220V/110V/48V/24V or AC12V/DC12V (±20%)
2. Dimensions Size:155*133*128mm
3. Weight: 645g
4. Material: glass-fiber
5. Protection degree: IP65

Basic Operation
6.1 Release the Emergency Stop
6.2 Turn the Rotary-Start key or other Rotary to O
6.3 Turn the Rotary-Start key to 1 position, the red and green flash at the same time, open the remote.
PS: The led will be flash red if you don't operate in right way!!!
6.4 Press each button to test whether the transmitter is good
6.5 After the operation is complete, follow these steps:
1. Turn the Rotary- Start key to 0 .
2. Press the emergency stop button.
3. Place the transmitter in a safe place.

Standard configuration:
One transmitter;
One receiver;
One 3m cable connect with receiver;
One operation and maintain manual.

DK-6S Wiring Diagram:

Inspection & Fault Detection:
A. LED red light flash quickly, Maybe the following Fault:
1. Button stuck
2. The emergency stop button does not rotate up
3. whether the rotary F1 switch turn on the 0
4. Do not start the remote in the correct way

B. The LED red light of transmitter flash slowly, you can control the receiver, if the battery power is insufficient, please charge.
C. The transmitter presses the operation button, and the led light red all the time, LED is extinguished when you released, the battery is seriously insufficient, can not transmit the signal to control the receiver, please charge immediately, otherwise the lithium battery will be damaged.
D. Release emergency stop button of transmitter when the Led light red all the time , it is SPI problem, please contact the dealer.
