IP67 Maritime IP Onvif SDI Thermal Imaging PTZ Cameras Car Ships Waterproof Mobile Security Vehicle Ugv, Border Defense Patrol, Logistics, Fire Alarm Rescue
Basic Info.
Model NO.
PATC-DZ613(G)
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
650tvl
Kind
Thermal Imaging Camera
Certification
CE, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
≧30m
Sensor Size
1/2.8
Remote Control
Without Remote Control
Resolution
384 X 288 and 640 X 480
Focus
Fixed
Video Sensor
1/2.8" Progressive Scan CMOS
Image Sensor
2.14MP
Control Interface
RS-485
Voltage
DC 10.8 -28V
Power
Min:12W; Max: 25W
IP Code
IP66
Protocols
HTTP, Rstp,TCP,UDP,Onvif
Lead Time
3-7 Work Days
Transport Package
Neutral Packing
Specification
CE, FCC, RoHS
Trademark
Winsafe
Origin
Shenzhen
HS Code
8525801390
Production Capacity
50000PCS/Month
Product Description

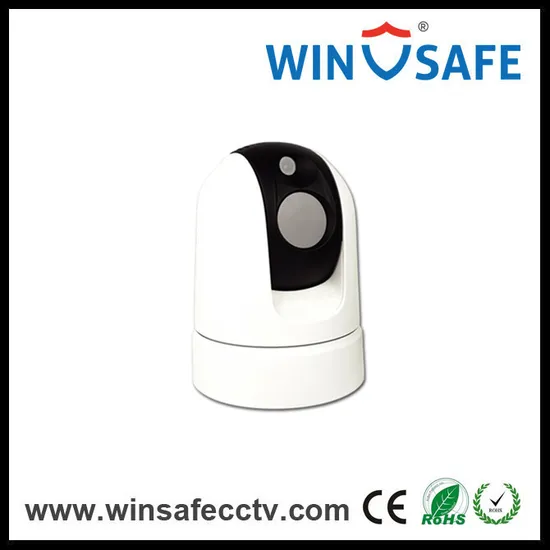

Mini Outdoor Security IP67 Vehicle Camera IP Thermal Imaging PTZ Dome Camera
IndicatorsOn Thermal & Daylight Images
Position indicators, status and scene icons are
displayed on both thermal & daylight cameras,
providing direct and exact information to assist navigation
Ethernet or Serial Control Through Keyboard Controller
Optional maritime keyboard controller has both Ethernet and RS485 interfacesto control thermal camera via either interface, the controller can be used to pan tilt and zoom the camera, operate the camera functions with its buttons and OSD menus, also move view the targets actively. the camera into / out of park mode.
Uncooled Amorphns Silicon FPA, resolution: 384x288/640x480
1/2.8" CMOS color visual camera, 2.14MP
Dual HD-SDI outputs for color visual camera and thermal imaging camera
Dual H.264 output for color visual camera and thermal imaging camera
Optical digital Gyro for image stabilization
Wide Dynamic Range(WDR)
Day/Night(ICR)
Soft PTZ address, self-adaption of protocol and baud rate
10.8 - 28V wide range voltage input
Waterproof index: IP66
Auto power-off with low power supply
Dimensions
| Model No. | PATC-DZ313(G) | PATC-DZ319(G) | PATC-DZ613(G) | PATC-DZ619(G) |
| Thermal Imaging Camera | ||||
| Sensor Type | Uncooled Amorphns Silicon FPA | |||
| Resolution | 384 x 288 | 640 x 480 | ||
| Sensor Size | 17μm | |||
| Aperture | 0.9 | |||
| Focus | Fixed | |||
| Image Frame Rate | 50HZ(PAL) / 60HZ(NTSC) | |||
| NETK(300K) | ≤60mk | |||
| Angular Resolution | 1.3 Mrad | |||
| FOV | 13mm:28.2° x 21.3° | 19mm:19.5° x 14.7° | 13mm:45.4° x 34.8° | 40mm:32.5° x 24.5° |
| Detecting Range | Vehicle:1758m Man:380m | Vehicle:2570m Man:550m | Vehicle:1758m Man:380m | Vehicle:2570m Man:550m |
| Recognition Range | Vehicle:439m Man: 95m | Vehicle:640m Man:130m | Vehicle:439m Man:95m | Vehicle:640m Man:130m |
| Video Display | Black Hot / White Hot | |||
| Digital Zoom | 1X,2X,4X | |||
| Daylight Imaging Camera | ||||
| Video Sensor | 1/2.8" Progressive Scan CMOS | |||
| Image Sensor | 2.14MP | |||
| Signal System(NET) | 1080P/30,1080P/25,720P/60,720P/50,720P/30,720P/25 | |||
| Signal System(SDI) | 1080P30,1080I60,720P60,720P30,1080P25,1080I50,720P50,720P25 | |||
| Lens | Manual Fixed Focus | |||
| WDR | On/Off | |||
| DNR | 1 - 5 Step/Off | |||
| Day/Night | Auto/Manual | |||
| PTZ | ||||
| Pan Range | 360° Continuous | |||
| Pan Speed | Control speed: 0.04° - 100°/s; Preset speed: 100°/s | |||
| Tilt Range | -15° - 90°(Auto Flip) | |||
| Tilt Speed | Control:0.2° - 60°/s, adjustable; Preset Speed: 60°/s | |||
| Preset | 256 | |||
| Preset Predicion | ±0.2° | |||
| Digital Gyro | 1 Axis(Optional) | |||
| Network | ||||
| Image Resolution | 1920*1080 @ 30fps | |||
| Image Compression | H.264 | |||
| Audio Compression | AAC | |||
| Protocols | HTTP, RSTP,TCP,UDP,ONVIF | |||
| Simultaneous Live View | Up to 10 | |||
| Dual Stream | Yes | |||
| Ethernet Interface | 10 / 100M | |||
| Audio Interface | 1 LINE IN | |||
| General | ||||
| Menu Language | English | |||
| Control Interface | RS-485 | |||
| Adress | 0 - 255 | |||
| Comm Protocol | PELCO-P/PELCO-D(Self-Adaptive) | |||
| Baud Rate | 2400bps, 4800bps,9600bps,19200bps(Self Adaptive) | |||
| Voltage | DC 10.8 -28V | |||
| Power | Min:12W; Max: 25W | |||
| Working Temperature | -30°C - +55°C | |||
| IP Code | IP66 | |||
| Dimensions | Φ135.9(mm) x 192(mm) | |||
| Weight | 2.1kg | |||
Application Picture
