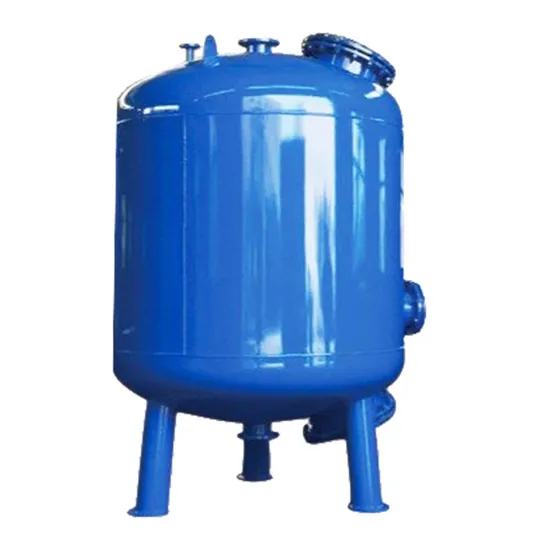

1000mm Sand Filter Industrial Water Filter for Water Reuse System with Activated Carbon Quartz Sand

Product Description

Product DescriptionMulti-media Filter
It through a reasonable filter material selection and filling method, as well as physical and chemical effects, successfully achieved the effective removal of suspended impurities in water, improve the water quality, and provide good conditions for the subsequent water treatment process.The Filtering Process
Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet valve (4).
The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential and when it reaches a preset value, the self cleaning process begins. Product Function
The function of multi-media filter is mainly reflected in the following aspects:
1. Remove suspended impurities
The multi-media filter can effectively remove suspended impurities in water, such as mud and sand, suspended solids, colloids, and organisms such as algae. The removal of these impurities can reduce mechanical damage and contamination to subsequent equipment, such as reverse osmosis membrane elements.
2. Improve water quality
After the water is treated with a multi-media filter, the turbidity can reach below 3 degrees, which greatly improves the transparency and cleanliness of the water quality. The effluent suspended matter can be less than 5 mg/l, meeting the needs of some water treatment process.
3. Pretreatment equipment
Multi-media filters are often used in pretreatment equipment for deep seawater purification, and various filter materials can be added according to process requirements. It can be used not only on its own, but also as a pre-filtration for advanced treatment of water quality (exchange resin, electrodialysis, reverse osmosis) .
Work PrincipleWorking Principle&Multi-media Filter
The working principle of the multi-media filter mainly involves the selection of the filter medium, the filling method, and the physical and chemical effects in the filtration process. Here's how it works in detail:
1. Selection and filling of filter media
Multi-media filters use one or more filter media, such as quartz sand, activated carbon, manganese sand, etc. These filter media have different mechanical strength, chemical stability and adsorption capacity, can effectively remove suspended impurities in water The filling method of the filter material is usually arranged in layers according to the specific gravity and particle size, such as the anthracite with small specific gravity is placed on the upper layer of the filter bed, the quartz sand with moderate specific gravity is placed on the middle layer, and the heavier gravel is placed on the bottom layer. This design can ensure that the filter in the
backwash does not occur when the phenomenon of disorderly layer, Thus, the retention capacity of the filter material is ensured.
2. Physical effects in the filtration process
When the raw water passes through the multi-media filter, the suspended matter in the water is trapped on the surface of the filter layer due to adsorption and mechanical choke. When the water flows into the middle of the filter layer, because the sand particles in the filter material layer are arranged more closely, the particles in the water have more opportunities to collide with the sand, so that the flocculant, suspended matter and the surface of the sand stick to each other, and the impurities in the water are trapped in the filter material layer, so as to obtain the clarified water quality .
3. Chemical action in the filtration process
Although the main role of the multi-media filter is to remove suspended impurities in the water through physical retention, it can also remove some organic substances, heterochromatic substances and odorous substances in the water to a certain extent. This is mainly due to the adsorption capacity of activated carbon and other filter materials .Application
Application scope
Multi-media filtration can be used for domestic water pretreatment, swimming pool water treatment, peripheral water filtration system, surface water, groundwater turbidity removal, wastewater treatment, reverse osmosis, electric sea analysis, high ion exchanger, ultrafiltration and other continuous pretreatment, power generation, chemical, paper, beverage and other raw water filtration treatment. Container type shallow sand filters can be used in industrial water equipment.
Application case Company ProfileHengshui Hanna Trading Co.,LTD

Manufacturing Experience	20+ years
Treatment Solutions	120+
Factory Area	300+ Squares
Quality Rate	99%
Exported Countries	50+
Machine Output	8000+pieces/year
