Hlh OEM ODM Manufacturer Wholesale ISO9001 CE&RoHS Weighing Load Cell Sensors

Product Description

Single Point Load Cell CZL601:
Type: single point load cell
Material: aluminum alloy
Surface: anodized treatment
Protection: IP65
Suggested Platform Size:
350 ×350 mm
Application: retail, bench and
counting scales

1. Rated Load	3-120 (Kg)
2. Rated Output	2.0mV/V±5%
3. Zero Balance	±1%F.S
4. Input Resistance	400±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20oC To +65oC
12.Temperature Effect on Zero	0.02%F.S/10oC
13.Temperature Effect on Span	0.02%F.S/10oC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	420mm(3mm 4-wire shielding cable)

Model: CZL638
Type: single point load cell
Material: aluminum alloy
Surface: anodized treatment
Protection: IP65
Maximum Platform Size:
400 ×500 mm
Application: platform scales and
counting scales

1. Rated Load	30-350 (Kg)
2. Rated Output	2.0mV/V±5%
3. Zero Balance	±1%F.S
4. Input Resistance	400±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0. 03%F.S/10ºC
13.Temperature Effect on Span	0.02%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	3m(Ф5mm 4-wire shielding cable)

Model: CZL642
Type: single point load cell
Material: aluminum alloy
Surface: anodized treatment
Protection: IP65
Suggested Platform Size:
450 ×450 mm
Application: retail, bench and
counting scales

1. Rated Load	80-300 (Kg)
2. Rated Output	2.0mV/V±5%
3. Zero Balance	±1%F.S
4. Input Resistance	400±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.03%F.S/10ºC
13.Temperature Effect on Span	0.02%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	3m(Ф3mm 4-wire shielding cable)

Model: CZL629
Type: single point load cell
Material: aluminum alloy
Surface: anodized treatment
Protection: IP65
Maximum Platform Size:
600 ×800 mm
Application: platform scales and
counting scales

1. Rated Load	100-1000 (Kg)
2. Rated Output	2.0mV/V±10%
3. Zero Balance	±1%F.S
4. Input Resistance	400±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.03%F.S/10ºC
13.Temperature Effect on Span	0.02%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	3m(Ф5mm 4-wire shielding cable)

Model: CZL803M
Type: single-ended shear beam load cell
Material: alloy steel
Surface: nickel plated or anodized treatment
Protection: IP66
Application: floor scales, cattle scales, hoppers and tank scales , platform scales

1. Rated Load	0.5-2 (t)
2. Rated Output	3.0mV/V±0.003
3. Zero Balance	±1%F.S
4. Input Resistance	350±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.03%F.S/10ºC
13.Temperature Effect on Span	0.02%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	3m(Ф5mm 4-wire shielding cable) connection: RED: POWER+, BLACK: POWER-, GREEN: SIGNAL+, WHITE: SIGNAL-

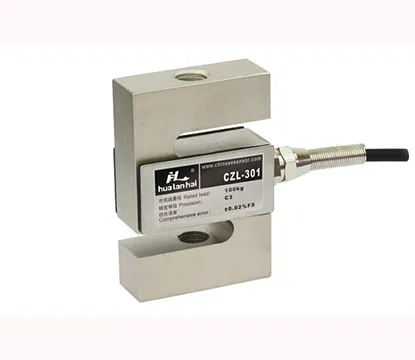

Model: CZL301
Type: S-beam load cell
Material: alloy steel
Surface: nickel plated treatment
Protection: IP65
Application: tension or compression applications, suitable for hanging scales, conversion of mechanical scales, hopper scales
and other weighing devices

1. Rated Load	50-5000 (Kg)
2. Rated Output	2.0mV/V±0.2%
3. Zero Balance	±1%F.S
4. Input Resistance	350±5Ω
5. Output Resistance	350±5Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.03%F.S/10ºC
13.Temperature Effect on Span	0.02%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	5m(Ф5mm 4-wire shielding cable)

Packaging
Carton Size: 38x30x30cm
Company Information
Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.
The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".
Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!
FAQ
About samples:
Yes, we have stock for samples.
About guarantee:
Three months for free replacement and one year for free repair.
About factory:
We are original manufacturer with 700 employees in Dongguan.
About certificates:
OIML, CE, ROHS, ISO9001, SGS
