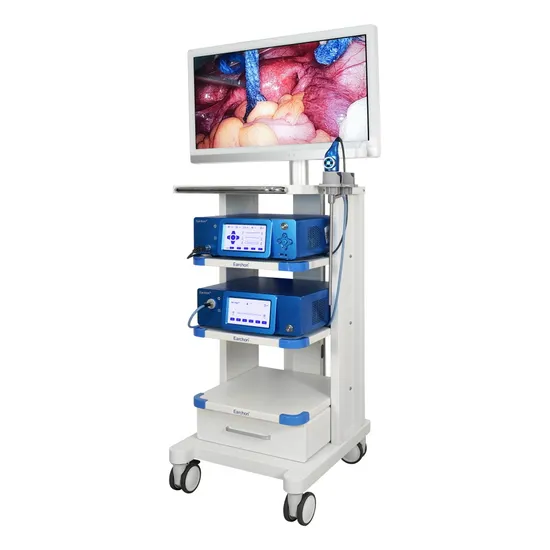

Laryngoscope Tower 4K Endoscope Camera with Recording Function

Product Description

Product Parameters

Model	YCSX-30
Resolution ratio	3840*2160P/60 Frames
Monitor size	27''/32''/55''
Endoscope resolution	3840*2160P
Image sensor	1/1.8 CMOS
Playback	Videos & pictures
Pictures	8 MP/JPG
Videos	3840*2160P/ MP4
Storage	USB
Output interface	HDMI(2.0)+DVI+SDI+3*USB3.0+Network interface
Light source	LED
CRI	≥200
Color temperature	5000k-7000k
Illumination uniformity	≥0.75
Handle button	Long press to record,short press to take photos,brightness adjustment
Custom Keys	WB, Freeze, Record, Photo, Scene switch, Zoom, Color, Brightness
Mouse & keyboard	Support
Internet	Support
Language	Chinese, English

Component Description
Endoscopy Camera System Host
4K UHD imaging (3840*2160P, 60 FPS);
Built-in USB storage, one key switch photo/video function;
Output interface(Host):
HDMI(2.0)+DVI+SDI+3*USB3.0+Network interface;
7 inch touch screen + mechanical buttons;
The first domestic output interface adopts four coaxial;
With scene memory function and one key sleep function, treduce energy consumption and extend service life.
LED Cold Light Source
CRl: ≥200; Uniformity of light: ≥0.75;
Ultra-high brightness LED cold light source, 0-100 level brightness adjustable;
Split design, low power consumption, no heat, more stable, low failure rate;
Camera Handle
4K endoscope camera handle;
IPX8 waterproof level, easy to sterilization;
4 function buttons, one-button photo/video/white balance/zoom;
A watch-like appearance, highlighting key points, more texture buttons;
Copper axis cable connection, simple and strong shielding performance, not easy to be disturbed.
Mobile Trolley
High strength 6 series aluminum composite base and laminate, beautiful and stable;
Bottom with storage drawer, easily access and store supplies.
Endoscope Camera Coupler Endoscopic fiber optical cable Optical Endoscope
4K Endoscopy Camera System
The medical 4K ultra-high-definition endoscopic camera system has 3840*2160P resolution and 60-frame image quality. The clarity reaches movie level, which is equivalent to more than 4 times the current full HD 1080p resolution, and there is no jitter in real time.
