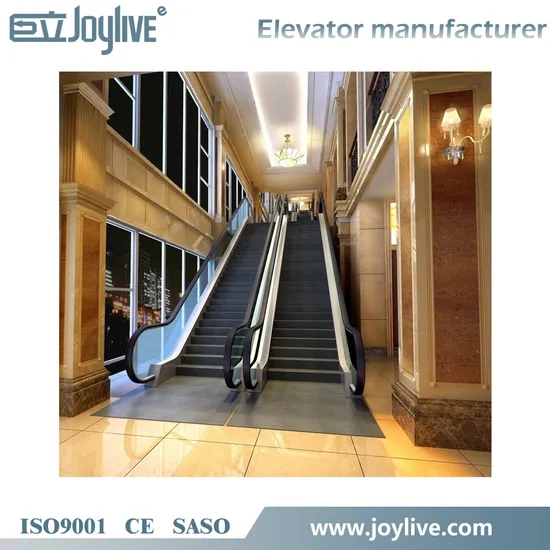

Commercial Indoor or Outdoor 0.65m/S Residential Escalator with CE Certifications

Product Description

Elevator Name:Commercial Indoor or outdoor 0.65m/s Residential Escalator with CE Certifications
MODEL: Escalator Applicable Site: commercial center, apartment, office building
Standard: EN115-1:2008+A1:2010 GB16899-2011
Energy Saving&Environmental Protection: frequency conversion control technology
Description:
- Indoor or outdoor
- Speed <=0.65m/s
- Lifting height: indoor <=14.4m, outdoor <=7.56m
- Step widths are 600mm, 800mm, and 1000mm
- Escalator: Tilt Angle 30° or 35°
- Number of horizontal steps 2/2,3/3
Versatile escalator and inclined moving walk that meets the specific requirements of commercial buildings and public transport applications; with various configuration packages, dependable performance and passenger safety.
Code Specification:
AA Distance from underfloor pit support point to the underbend arc system point
BB Distance from upper pit support point to upper curved arc system point
CC The horizontal length of the inclined section
DD pit support distance to faucet
EE Distance of upper pit support to faucet
FF pit length
GG pit depth
HU head depth
HI dip section depth
HL lower head depth
HA guardrail height
H lifting height
SPAN Total span
A Step width
B Decorative width
C Width of civil opening
D armrest spacing
E Width of civil opening
F Width of civil opening
G Width of support seat30° Specification and dimension

Support reaction
	Step width
	600	800	1000
R1(KN)	3.5 x L+15.5	4 x L+17	4.5 x L+18.5
R2(KN)	3.5 x L+10	4 x L+11	4.5 x L+11.5

Motor Power (Kw)
Step Width (MM)	Rising height (MM)	Power
1000	1500-3200	5.5
	3200-4800	8
	4800-6000	11
800	≤4200	5.5
	4200-6000	8
600	≤6000	5.5

Dimension(MM)
A	Step width	600	800	1000
B	Decoration width	1140	1340	1540
C	Construction width	1200	1400	1600
D	Handrail distance	838	1038	1238
E	Construction width	1838	2038	2178
F	Construction width	1200	1400	1600

35° Specification and dimension

Support reaction
	Step width
	600	800	1000
R1(KN)	3.5 x L+15.5	4 x L+17	4.5 x L+18.5
R2(KN)	3.5 x L+10	4 x L+11	4.5 x L+11.5

Motor power (Kw)
Step Width (Mm)	Rising height (мм)	Power
1000	1500-3500	5.5
	3500-5000	8
	5000-6000	11
800	≤4500	5.5
	4500-6000	8
600	≤6000	5.5

Dimension(MM)
A	Step width	600	800	1000
B	Decoration width	1140	1340	1540
C	Construction width	1200	1400	1600
D	Handrail distance	838	1038	1238
E	Construction width	1838	2038	2178
F	Construction width	1200	1400	1600

Spare Parts List:

Part Name	Position	Replacement Cycle
Comb plate	Upper and lower front plates	Press wear
Pedal trim	step	Press wear
Armrest press belt chain	Handrail drive	Press wear
Handrail strap	Handrail drive	Press wear
step	Step guide	Press wear
Step main wheel	Cascade chain	Press wear
Step auxiliary wheel	step	Press wear
Step guide block	step	Wear up to 1.2mm
Brake belt	brake	Press wear
LXW6-11Q1	Safety switch	From time to time according to usage
ZR231	Safety switch	From time to time according to usage
TR231	Safety switch	From time to time according to usage

List of functions is as follows:

Elevator Standard Function
1	Elevator frequency inverter drive	6	Overload protection	11	Directly floor stop	16	Security floor nighttime
2	Door machine frequency inverter drive	7	CPU fault protection	12	Running status display	17	Attendant reversal
3	Collective selective control	8	Anti slip protection	13	Car position auto correction	18	Front and back door independent control
4	Lift attendant control	9	Up and down limit protection	14	Lighting fan energy saving function	19	VIP Service
5	Inspection running	10	Over speed protection	15	Car passing chime	20	Forced floor leveling
Standard device
1	Phase lack/loss protection	2	Motor overload protection	3	Electrical circuit protection	4	Handrail inlet protection
5	Comb plate safety protection device	6	Step sagging protection device	7	Drive chain broken protection	8	Step chain broken protection
9	Over-speed protection	10	Direction reversal protection	11	Security line	12	Emergency stop button
13	Skirt panel protection	14	Brake protection	15	Inspection safety switch	16	Warning lightings
17	Alarm bell starting device	18	Handrail broken protection device	19	Handrail speed monitoring	20	Skirting brush
Standard function
1	Handrail inlet entrance	2	Automatic lubrication	3	Roller built-in step chain	4	Fault indication
5	Step warning light	6	Two-way operation	7	Emergency stop	8	Inspection running
Optional function
1	Running direction indication	2	Auto start/stop	3	Handrail illumination	4	Comb illumination
5	Skirt illumination	6	Heating device	7	Oil/water separator(Outdoor type)	8	Frequency conversion control

Joylive Elevator Series

Model/Type	Series	DESCRIPTION+ SEGMENT	MACHINE ROOM	MAX.SPEED	MAX.TRAVEL	MAX.LOAD/ PERSONS
GP30(SMR) Passenger Lift	3000 Residential Lift	Economic elevator with acompact machine room	Yes	2.5m/s	125m	1600 kg/up to 21 persons
	5000 Commercial Lift	High-speed elevator for high-rise buildings	Yes	4.0m/s	200m	2000 kg/up to 27 persons
	7000 High-speed Lift	Ultra-high-speed elevatorfor skyscraper buildings	Yes	8.0m/s	400m	1600 kg/up to 21 persons
GPN30(MRL) Passenger Lift	3000 Residential PassengerLift	Economical elevatorfor residential buildings	No	1.75m/s	90m	1050 kg/up to 14 persons
	5000 Commercial PassengerLift	High-speed elevator for high-rise buildings	No	2.5m/s	125m	2000 kg/up to 27 persons
HospitalLift	B5000S SMR Lift	Middle-speed elevator for hospital buildings	Yes	2.5m/s	125m	1600 kg/up to 21 persons
	B5000N MRL Lift	Middle-speed elevator for hospital buildings	No	2.0m/s	100m	1600 kg/up to 21 persons
Freight Lift	F100 MR Freight Lift Geared motor	Solid&reliable heavy-duty freight elevator	Yes	1.0m/s	50m	5000kg
	F200 MR Freight Lift Gearless motor	Energy-saving heavy-duty freight elevator	Yes	1.0m/s	50m	20000kg
	FN100 MRL Freight Lift Gearless motor	Energy and space saving heavy-duty freight elevator	No	1.5m/s	75m	3000kg
	GFH10 Hydraulic lift	Unique advantage and adaptability for limit space	No	0.5m/s	25m	5000kg
PanoramicLift	GO10 SMR	Wide view with strong safety glass for sighting seeing buildings	Yes	1.75m/s	90m	1600 kg/up to 21 persons
	GON30 MRL		No	1.75m/s	90m	1600 kg/up to 21 persons
GH30 HomeLift	6300 Backpack type	Highly customized elevatorfor house/villa	No	0.5m/s	15m	410 kg/up to 5 persons
	6600 Gantry beam type		No	0.5m/s	15m	410 kg/up to 5 persons
GE05 Escalator	E200/E300/ E500	Adaptable escalator solution forpublic transportation	/	0.75m/s	16m	30°/35°
GM10 Moving Walkway	M200	Adaptable moving walkway solution for public transportation	/	0.65m/s	43.47m	0°/10°/11° /12°
GW05 Dumbwaiter	W100	Small space, applicable to hotels,restaurants and other places	No	0.4m/s	15m	300 kg
