SM811K01 32SE018173R1

Product Details

Product Description

Product Description
Brand:ABB

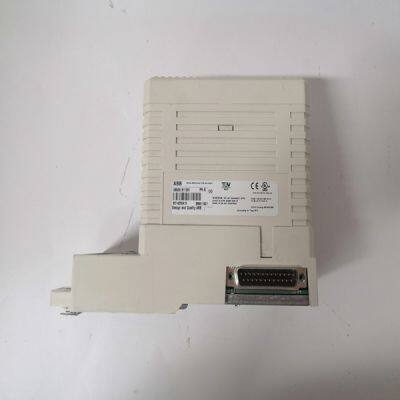

Type:SM811K01 32SE018173R1
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
The Extraction/Admission (Extr/Adm) control receives an extraction/admission (4–20 mA) signal from a pressure or flow transducer. The Extr/Adm PID controller then compares this signal to the setpoint to generate an output signal to the Ratio/Limiter. The Extr/Adm control can also receive a programmable (optional) droop feedback signal to increase the stability of the extraction control loop. The Extr/Adm setpoint is adjustable with raise or lower commands through the keypad on the front of the control, the remote contact inputs, or the communication links. Also, the setpoint can be directly set by entering the new setpoint from the keypad or through either Modbus communications link. In addition, a remote extr/adm setpoint analog input can be programmed to remotely position the Extr/Adm setpoint. Remote Extraction/Admission Setpoint One of the 4–20 mA inputs can be configured to remotely adjust the Extr/Adm setpoint. The remote setpoint input directly affects the 505E’s Extr/Adm setpoint. The maximum rate at which the remote input signal can change the setpoint is programmable and can be changed in the Run mode. When the remote setpoint is enabled, the Extr/Adm setpoint will move at a much slower rate until the two settings are matched, at which point the setpoint will be allowed to move at the maximum rate. The remote setpoint function can be enabled and disabled as required from the front-panel keypad, the remote contact inputs or either Modbus communication link. Ratio/Limiter The Ratio/Limiter receives input signals from the speed (or aux) and extr/adm control PIDs. The ‘ratio’ logic uses these signals and, based on the turbine performance parameters, produces two output signals, one to control the HP actuator and one to control the LP actuator.
The ‘limiter’ logic keeps the actuator outputs within the boundaries of the turbine steam map. The ratio logic controls the interaction of both HP and LP valves to maintain desired turbine speed/load and extraction/admission pressure/flow levels. By controlling valve interaction, the ratio logic minimizes the effects of one controlled process on the other controlled process. When speed/load or extraction/admission demands cause the turbine to reach an operating limit, the limiter logic limits the HP or LP valves to maintain speed/load or extraction/ admission demands depending on the priority selected.
