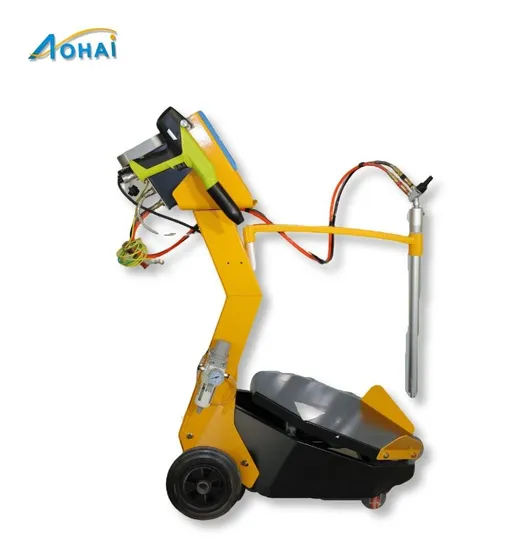

China Factory Wholesale Electric Powder Coating Spay Gun Machine Price

Product Description

China factory wholesale Electric Powder Coating Spay gun Machine Price Product Description
Product performance
Opt Electrostatic spraying machine is a high performance spraying machine that utilizes advanced vibration technology. The electrostatic sprayer uses an electric vibration unit to generate high-frequency vibration and evenly spray the powder onto the object to be sprayed.
Electrostatic spraying machine high efficiency and energy saving. Vibration spraying technology reduces powder waste and spatter, and improves powder coating rate. At the same time, electrostatic sprayers use less energy, reducing energy consumption and environmental impact.
Product advantage
1. The suction tube is made of high quality aluminum alloy, which is not easy to deform and has long service life. Self-cleaning facilitates color change. With the help of a vulcanization ring at the bottom of the shaking table, the powder is further vulcanized for optimal results, capable of rapidly changing color in 45 seconds.
2. Low rework rate, suitable for various types of spraying. Easy to operate.
3. All accessories are manufactured according to high quality standards, reliable quality and long service life.
4. Main air seal design to prevent dust from entering and damaging the machine (loop air path separation design)
5. Enhanced frame design, with moving roller, easy to move.
6. Advanced Venturi technology, spray evenly, save a lot of powder
7. Ultra-lightweight design, spray gun feel comfortable, improve spraying efficiency.
Composition of Powder Coating Spray gun machine
1.Controller Industrial Intelligent Powder Coating Powder Machine

1) Intelligent 2) Multi-function
3)One-key operation for deep corner and Re-coating process
4) Remote HV control by the gun
5) Digital display for all the values

2.Manual Spraying gun
1)Antistatic wear-resistant material for spray gun
2)Ensures the high voltage and the service life
3)The remote control buttonis at the back of the gun
4)The powder output and program can be adjustable at any time.
3.Powder pump 1) Insert use pure Teflone material,which was not easy to stick to powder

2)The conductive ring is connected with powder tube

3) To reduce the possibility of the powder adsorbing on the powder pump

4)Reduce the damage of high speed fluidized powder to pump body
4.Powder hose 1)High quality rubber material.
2)Good flexibility, can bend at any angle, no creases.
3)Containing grounding wires.
To reduce the possibility of powder adsorb on powder hose.

4)Prolong service life of powder hose.
5.Powder suction tube 1)Use of high quality aluminum alloy, not easy to deform with long service life.
2)Self- cleaning facilitates color change.
3)Bottomed fluidization ring with the help of the vibrating table.
4)The fluidized ring further fluidization of the powder.Fluidization effect achieves the best.
1.Motor shock suction electrostatic spray gun: The bottom is equipped with 200w vibration motor, each time the motor vibration stops spraying, the electric machine will delay 30 seconds to stop, the advantage of the motor is that the vibration frequency is uniform, the powder effect is uniform, and the host and the spray gun are imported accessories and the original Golden horse universal powder rate can reach more than 98%.
2.Pneumatic shock suction spray gun: The bottom is controlled by a pneumatic pressure regulator to vibrate, due to the instability of air pressure, vibration frequency uniformity is slightly low, and the host and spray gun are domestic accessories.
Product Parameters
Specification

No	Item	Data
1	Voltage	110v/220v
2	Frenquency	50/60HZ
3	Input power	40W
4	Max. output current	200ua
5	Output power voltage	0-120kv
6	Input Air pressure	0.3-0.6Mpa
7	Powder consumption	Max 550g/min
8	Polarity	Negative
9	Gun weight	480g
10	Length of Gun Cable	5m

Detailed Photos







Company Profile

Dezhou Aohai Coating Equipment Co., Ltd. is a professional manufacturer and exporter of coating equipment, dedicated to the design, development and production of various powder coating equipment. We have CNC punching machines, bending machines, laser cutting machines, etc., and have a good production space to ensure our production capacity and efficiency. We have a development technical team with extensive experience in the powder coating industry and a professional sales and service team, which enables us to provide quality assured powder coating equipment and services to customers from all over the world. The main products are manual/automatic powder electrostatic spraying machine, automatic spraying control system, self-circulation powder supply system, automatic reciprocating elevator, multi-tube cyclone separator, and so on. The products are novel, exquisite and durable, well received by domestic and foreign painting experts, and have agents in many countries in the world. We are always committed to satisfying our customers and our partners.









Packaging & Shipping





After Sales Service

FAQ:
Q: Do you have the powder coating machines in stock?
A: Yes, almost we have in stock, if no stock, we can also arrange production for you within 3 work days.
Q: How long is the delivery time?
A: Normally It takes about 3 days to ship, and 5-8 days to deliver to your physical address.
Q: Which model should I choose?
A: Our professional sales will recommend specially according to your needs. We offer abundant types with different features to suit various coating requirement for simple or complicated work pieces.
Q: How to operate this powder coating machine, any video or instructions?
A: We have operation video and instruction manual to teach you how to use the machine. Our maintain services team
will offer the best service for you.
Q: Do you supply spare parts for the powder coating machine?
A: Sure, all the spare parts are available.
Q: Can I order special color or special size or logo that we need?
A: Definitely, we can customize brand and change the design of control panel as you required.
Q: What is your terms of payment?
A: Payment=5000USD, 30% T/T in advance, balance before shippment.
