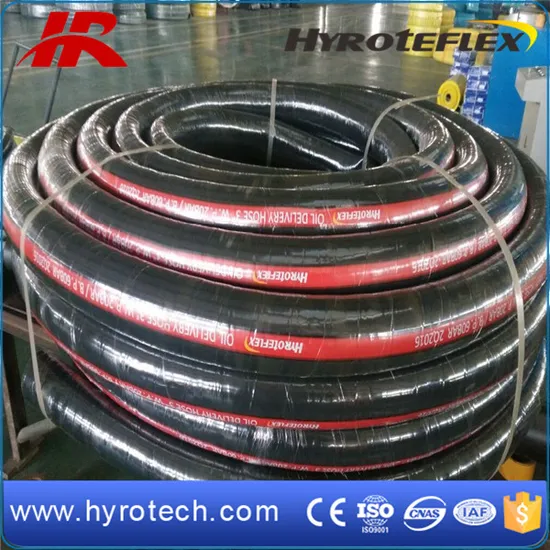

Suction and Discharge Oil Hose Gasoline Fuel Hydraulic Oil
Basic Info.
Model NO.
Oil Suction and Discharge Hose
Length
40m/60m
Surface
Smooth or Corrugated as Your Needs
Working Pressure
10bar and 20bar Both Have
Hscode
40092100
Anti-Static
Yes
Reinforcement
Synthetc Cord and Steel Helix Wire
Application
Suction and Discharge Oil
Resistant
Hydraulic Oil, Gasoline, Fuel
Transport Package
PVC Film or as Your Request
Specification
3/4′′-12′′
Trademark
hyroteflex
Origin
Shandong, China
HS Code
40092100
Production Capacity
3000000m/Year
Product Description
Tube: NBR rubber, black, smooth
Reinforcement; High strength synthetic cord, anti-static copper wire available, and steel helix wire
Cover: Synthetic rubber, black, wrapped finish, weather and oil-resistant
Temperature: -20ºC to +80ºC
Application: Mandrel hard wall hose used for the suction and delivery of petroleum products with aromatic content up to 30%
Specification of oil suction hose is as follows:
Working Pressure also can be 20BAR, burst pressure 60BAR
| Inside | Outside | Working | Burst | Nominal | Bending | Length | |||
| Diameter | Diameter | Pressure | Pressure | Weight | Radius | ||||
| inch | mm | mm | bar | psi | bar | psi | kg/m | mm | m |
| 3/4 | 19 | 30 | 10 | 150 | 30 | 450 | 0.67 | 160 | 60/40 |
| 1 | 25 | 36 | 10 | 150 | 30 | 450 | 0.84 | 180 | 60/40 |
| 1-1/4 | 32 | 44 | 10 | 150 | 30 | 450 | 0.95 | 200 | 60/40 |
| 1-1/2 | 38 | 51 | 10 | 150 | 30 | 450 | 1.2 | 250 | 60/40 |
| 2 | 51 | 64 | 10 | 150 | 30 | 450 | 1.55 | 300 | 60/40 |
| 2-1/2 | 64 | 78 | 10 | 150 | 30 | 450 | 2.17 | 400 | 60/40 |
| 3 | 76 | 90 | 10 | 150 | 30 | 450 | 2.54 | 400 | 60/40 |
| 3-1/2 | 89 | 103 | 10 | 150 | 30 | 450 | 2.95 | 500 | 60/40 |
| 4 | 102 | 117 | 10 | 150 | 30 | 450 | 3.44 | 500 | 60/40 |
| 5 | 127 | 142 | 10 | 150 | 30 | 450 | 4.56 | 600 | 20 |
| 6 | 152 | 167 | 10 | 150 | 30 | 450 | 5.41 | 600 | 20 |
| 8 | 203 | 225 | 10 | 150 | 30 | 450 | 12.45 | 1000 | 10 |
| 10 | 254 | 280 | 10 | 150 | 30 | 450 | 19.53 | 1300 | 10 |
| 12 | 304 | 332 | 10 | 150 | 30 | 450 | 26.47 | 1600 | 10 |
